FB_ModbusTcpOpen

FB_ModbusTcpOpen 1:

The function block opens a TCP/IP connection to a remote partner on the MODBUS/TCP port. To keep resource consumption to a minimum, the maximum number of open connections has been limited to 4. If it is necessary to establish a further connection, a connection that is not currently in use can first be closed using the FB_ModbusTcpClose function block. If successful, the FB_ModbusTcpOpen function block supplies a port number in the iMyPortNo output variable. This port number is required in order to send a MODBUS request using either of the FB_ModbusTcpRequest or FB_ModbusTcpClose function blocks, e.g. to close the connection. When opening the connection, the tTimeout input parameter is also used to specify the time-out period for the MODBUS request and for the disconnection. After about 10 seconds, a connection that has been opened but has not been used during that period is automatically closed, and must be reopened if needed.

VAR_INPUT

VAR_INPUT
    bStart       : BOOL;
    sRemoteIPAddr: STRING(15);
    tTimeOut     : TIME;
END_VAR

bStart: the function block is activated by a rising edge at this input.

sRemoteIPAddr: this variable is a string containing the network address (IP address) of the remote partner.

tTimeOut: indicates the time, which must not be exceeded during command execution.

VAR_OUTPUT

VAR_OUTPUT
    bBusy       : BOOL;
    bError      : BOOL;
    iErrorId    : WORD;
    iMyPortNo   : WORD;
END_VAR

bBusy: if the function block is activated, this output is set. It remains set until a feedback is received.

bError: if an error should occur during the execution of the command, then this output is set, after the bBusy output has been reset.

iErrorId: supplies the command-specific error code (table) or the device-specific error code if the bError output is set.

iMyPortNo : when successful, the port number associated with the connection is returned at this output. The port number is a dynamic number, generated afresh each time the connection is established.

Error Codes

Description

0x8500

Resource error

0x8501

No socket available

0x8502

Open connection error



Sample of calling the function block in FBD:

PROGRAM MAIN
VAR
    fbModbusOpen   : FB_ModbusTcpOpen;
    bOpen          : BOOL;
    bBusy          : BOOL;
    bError         : BOOL;
    nErrId         : WORD;
    nConnectionPort: WORD;
END_VAR

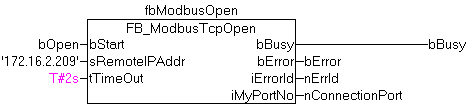

FB_ModbusTcpOpen 2:

In this sample, a rising edge at the bOpen input causes a TCP/IP connection to the remote partner with network address '172.16.2.209' to be established.



Requirements

Development environment

Target platform

PLC libraries to include

TwinCAT v2.7.0 and below

BC9xxx (165) firmware version >= 0xB6

TcModbusTCPBC.Lb6
