FB_EnOceanSTM100
Obsolete! Please use in new projects the function block FB_EnOceanSTM100Generic().
The function-block FB_EnOceanSTM100() allows a user-friendly anaysis of the data sent by an EnOcean STM100-module. It gets its information from the receiver-unit FB_EnOceanReceive().
It is very important , that for every new EnOcean STM100-module a new instance of the FB_EnOceanSTM100() has to be programmed.
VAR_INPUT
bEnable : BOOL := FALSE;
tWatchdog : TIME;
nTransmitterId : UDINT;
stEnOceanReceivedData : ST_EnOceanReceivedData;
bEnable: A positive signal at this input sets the function-block to the active-state. With a negative signal at the bEnable input the unit is without function and all outputs will be set to 0 or FALSE.
tWatchdog: Within this time the information at the input stEnOceanReceivedData has to be updated. The watchdog is disabled, if the entered time is set to t#0s.
nTransmitterId: The ID of the EnOcean-Transmitter, the function-block is assigned to.
stEnOceanReceivedData: Raw-information and therefore neccessary connection to the EnOcean receive function block FB_EnOceanReceive(). This information is assemled in a structure of the type ST_EnOceanReceivedData.
VAR_OUTPUT
eEnOceanRotarySwitch : E_EnOceanRotarySwitch;
nSetpoint : INT;
nTemperature : INT;
bPresentSwitch : BOOL;
bLearnSwitch : BOOL;
bError : BOOL := FALSE;
nErrorId : UDINT := 0;
eEnOceanRotarySwitch: This output describes the state of the rotary-switch on the transmitting-module. The information is defined by an ENUM called E_EnOceanRotarySwitch.
nSetpoint: The setpoint on the transmitter can be read at this output-variable. The range goes from -100 up to 100.
nTemperature: At this variable the measured temperature is given in 1/10 deg C. The lower limit is 0 deg C and the upper limit is 40 deg C. If the function-block is in a Watchdog-error-state, the temperature will be set to 850 deg C.
bPresentSwitch: This output will be TRUE, if the present-button on the transmitter is pressed.
bLearnSwitch: This output will be TRUE, if the learn-button on the transmitter is pressed.
bError: If the function-block is in an error-state, this output will be set to TRUE. This error is described by the variable nErrorId.
nErrorId: Type of error (see Errorcodes).
The following example should give some idea, how the function-block has to be used:
PROGRAM MAIN
VAR
fbEnOceanReceive : FB_EnOceanReceive;
fbEnOceanSTM100_1 : FB_EnOceanSTM100;
fbEnOceanSTM100_2 : FB_EnOceanSTM100;
nTemperature : ARRAY [1..2] OF INT;
nSetpoint : ARRAY [1..2] OF INT;
nStateRotarySwitch : ARRAY [1..2] OF E_EnOceanRotarySwitch;
bPresentSwitch : ARRAY [1..2] OF BOOL;
END_VAR
fbEnOceanReceive(bEnable := TRUE,
stEnOceanInData := stEnOceanInData,
stEnOceanOutData := stEnOceanOutData);
fbEnOceanSTM100_1(bEnable := NOT fbEnOceanReceive.bError AND fbEnOceanReceive.bEnable,
nTransmitterId := 16#000000C4,
tWatchdog := t#1h,
stEnOceanReceivedData := fbEnOceanReceive.stEnOceanReceivedData,
nTemperature => Temperature[1],
nSetpoint => nSetpoint[1] ,
eEnOceanRotarySwitch => nStateRotarySwitch[1],
bPresentSwitch => bPresentSwitch[1]);
fbEnOceanSTM100_2(bEnable := NOT fbEnOceanReceive.bError AND fbEnOceanReceive.bEnable,
nTransmitterId := 16#000000C5,
tWatchdog := t#0s,
stEnOceanReceivedData := fbEnOceanReceive.stEnOceanReceivedData,
nTemperature => Temperature[2],
nSetpoint => nSetpoint[2] ,
eEnOceanRotarySwitch => nStateRotarySwitch[2],
bPresentSwitch => bPresentSwitch[2]);
In this program two sensor-modules are observed - one has the ID 16#000000C4 and the other one 16#000000C5. Each transmitter has its own instance of the function-block FB_EnOceanSTM100() - these two units are getting their information of the pre-posted receiver FB_EnOceanReceive() and are only active (Input bEnable), if the receiver is active and not in an error-state. The first transmitter is observed by the watchdog-function, in this case the information has to be updated every hour. The second transmitter works without watchdog-observation. The resulting information is then assigned to variables for further usage in the program.

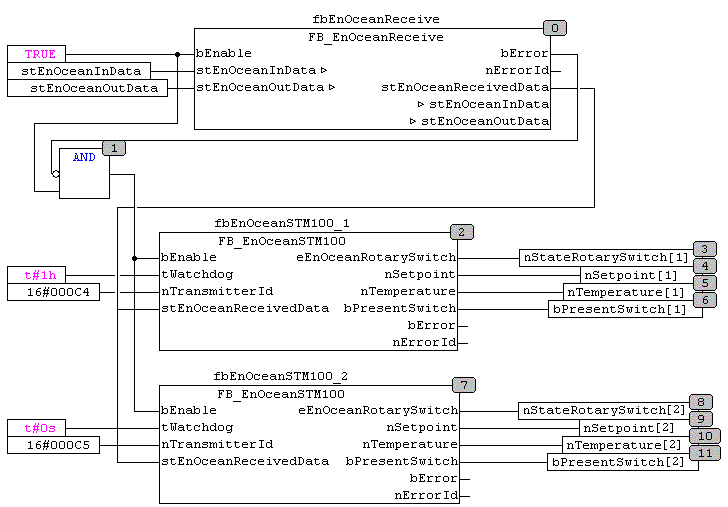

In continuous function chart editor (CFC) this example would look like the following:
