FB_IolWrite

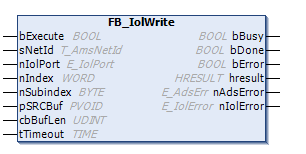

Function block for writing IO-Link parameters in a non-object-oriented solution.

Inputs

Name	Type	Description
bExecute	BOOL	Rising edge to start the function block
sNetid	T-AmsNetid	AMS NETID of the IO-Link master
nlolPort	E_lolPort	IO-Link port of the IO-Link device
nIndex	WORD	Index of the IO-Link device parameter
nSubindex	BYTE	Subindex of the IO-Link device parameter
pSCRBuf	PVOID	Pointer to source buffer
cbBufLen	UDINT	Size of the data bytes to be read
tTimeout	TIME	Maximum allowed execution time

Outputs

Name	Type	Description
bBusy	BOOL	Busy flag of the function block
bDone	BOOL	Done flag of the function block
bError	BOOL	Error flag of the function block
hResult	HRESULT	Return value of this function block
nADSError	E_AdsErr	ADS error code
nIolError	E_IolError	IO-Link error code

Sample

The following function block is part of the IoLink sample project. For more information, see the chapter Samples.

FUNCTION_BLOCK FB_Sample_02_IolWrite
VAR_INPUT
    bExecute                : BOOL := FALSE;
    sApplicationTag         : STRING(32) := '';
END_VAR
VAR_OUTPUT
    bBusy                   : BOOL := FALSE;
    bDone                   : BOOL := FALSE;
    bError                  : BOOL := FALSE;
    nAdsError               : E_AdsErr := E_AdsErr.NOERR;
    nIolError               : E_IolError := E_IolError.NoError;
    sErrorTxt               : STRING(255) := '';
END_VAR
VAR
    bExecuteOld             : BOOL;
    nState                  : INT := 0;
    fbIolWrite              : FB_IolWrite;
END_VAR

////
// Execute/Busy State Machine
//
IF bExecute AND NOT bExecuteOld AND NOT bBusy THEN
    bBusy := TRUE;
    nState := 10;    // WRITE
ELSIF NOT bExecute THEN
    bBusy := FALSE;
    bError := FALSE;
    bDone := FALSE;
    nAdsError := E_AdsErr.NOERR;
    nIolError := E_IolError.NoError;
    sErrorTxt := '';
END_IF
bExecuteOld := bExecute;

////
// FB State Machine
//
CASE nState OF

// IDLE
0:;

// WRITE
10:
    sApplicationTag := '';

    fbIolWrite(bExecute := FALSE);
    fbIolWrite.sNetId := F_CreateAmsNetId(GVL_IO.sTerm2AmsNetId);
    fbIolWrite.nIolPort := GVL_IO.nTerm2EPI1008;
    fbIolWrite.pSRCBuf := ADR(sApplicationTag);
    fbIolWrite.cbBufLen := INT_TO_UDINT(LEN(sApplicationTag));
    fbIolWrite.nIndex := 16#18;
    fbIolWrite.nSubindex := 0;
    fbIolWrite.bExecute := TRUE;

    nState := 20; // WAIT_FOR_DONE

// WAIT_FOR_DONE
20:
    IF fbIolWrite.bDone THEN
        bDone := TRUE;
        bBusy := FALSE;
        nState := 0; // IDLE
    END_IF
END_CASE

////
// call FBs
//
fbIolWrite();

////
// Error Handling
//
IF NOT bError AND bBusy THEN
    IF fbIolWrite.bError THEN
        nState := 0;
        bBusy := FALSE;
        bError := TRUE;
        nAdsError := fbIolWrite.nAdsError;
        nIolError := fbIolWrite.nIolError;
        sErrorTxt := F_IolGetErrorTxt(fbIolWrite.hresult);
    END_IF
END_IF

Requirements

Development environment	Required PLC library
TwinCAT from v3.1.4024.25	Tc3_IoLink from v3.3.4.0
