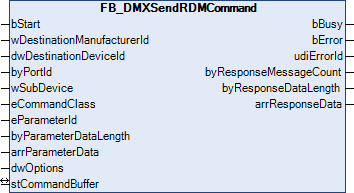

FB_DMXSendRDMCommand

Inputs

VAR_INPUT
  bStart                     : BOOL;
  wDestinationManufacturerId : WORD;
  dwDestinationDeviceId      : DWORD;
  byPortId                   : BYTE;
  wSubDevice                 : WORD;
  eCommandClass              : E_DMXCommandClass;
  eParameterId               : E_DMXParameterId;
  byParameterDataLength      : BYTE;
  arrParameterData           : ARRAY [0..255] OF BYTE;
  dwOptions                  : DWORD := 0;
END_VAR

Name	Type	Description
bStart	BOOL	The function block is activated by a positive edge at this input.
wDestinationManufacturerId	WORD	Unique manufacturer Id of the DMX device.
dwDestinationDeviceId	DWORD	Unique device Id of the DMX device.
byPortId	BYTE	Channel within the addressed DMX device. Sub-devices are addressed through the Port Id. The root device always has the Port Id 0.
wSubDevice	WORD	Sub-devices should be used in devices with a recurring number of modules, such as a dimmer rack. The sub-devices input enables parameter messages to be sent to a particular module within the device, in order to read or set module properties.
eCommandClass	E_DMXCommandClass	Command Class (CC) indicates the message action (see E_DMXCommandClass).
eParameterId	E_DMXParameterId	Parameter Id is a 16-bit number, which identifies a particular type of parameter data (see E_DMXParameterId).
byParameterDataLength	BYTE	The parameter data length (PDL) is the preceding number of slots, included in the parameter data area. If this input is 0x00, there is no parameter data to follow.
arrParameterData	ARRAY OF BYTE	Parameter data of variable length. The format of the content depends on the PID.
dwOptions	DWORD	Options (currently not used).

Inputs/outputs

VAR_IN_OUT
  stCommandBuffer : ST_DMXCommandBuffer;
END_VAR

Name	Type	Description
stCommandBuffer	ST_DMXCommandBuffer	Reference to the structure for communication (buffer) with the function block FB_EL6851Communication()

Outputs

VAR_OUTPUT
  bBusy                  : BOOL;
  bError                 : BOOL;
  udiErrorId             : UDINT;
  byResponseMessageCount : BYTE;
  byResponseDataLength   : BYTE;
  arrResponseData        : ARRAY [0..255] OF BYTE;
END_VAR

Name	Type	Description
bBusy	BOOL	When the function block is activated the output is set, and it remains active until execution of the command has been completed. For some errors (e.g. faulty parameters), bError is set immediately after the positive edge at bStart without bBusy switching to TRUE.
bError	BOOL	This output is switched to TRUE as soon as an error occurs during the execution of a command. The command-specific error code is contained in udiErrorId. Only valid if bBusy is FALSE.
udiErrorId	UDINT	Contains the command-specific error code of the most recently executed command. Only valid if bBusy is FALSE (see error codes).
byResponseMessageCount	BYTE	This output indicates that the DMX slave contains further messages. The RDM command Get: QUEUES_MESSAG is used to read these messages.
byResponseDataLength	BYTE	Contains the number of bytes returned by the RDM command.
arrResponseData	ARRAY OF BYTE	This output contains the data of the response from the RDM command. The length is variable, and the data format depends on the RDM command.

Requirements

Development environment	PLC library to include
TwinCAT from v3.1.4020.14	Tc2_DMX from 3.5.3.0
