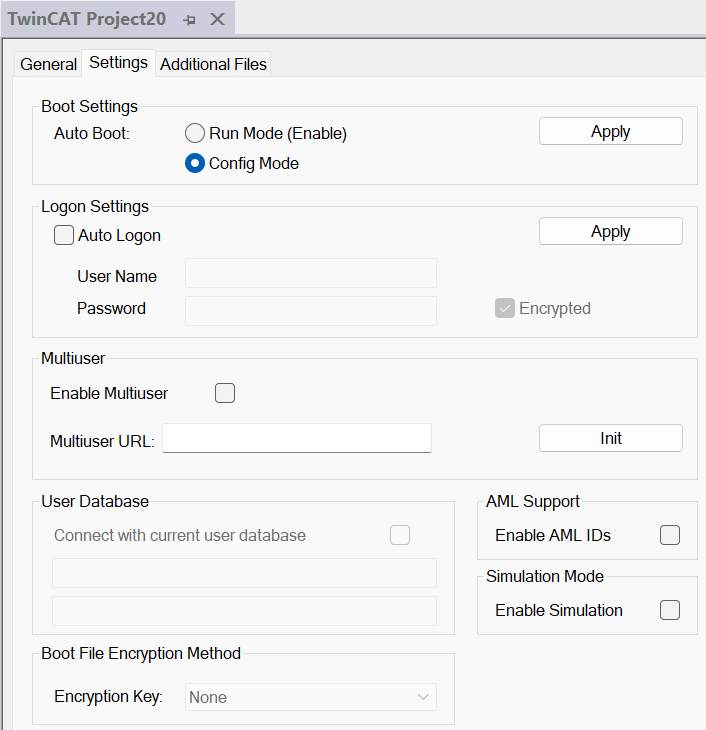

Settings tab

Auto Boot

• Run Mode (Enable): TwinCAT starts in Run Mode as soon as a user logs on to the Windows system.
• Config Mode (default setting)

Auto Logon

If, in addition to the “Run Mode (Enable)” option, the “Auto Logon” option is also enabled, TwinCAT starts in Run Mode and the loaded and enabled boot projects are processed independently.

User Name

Password

User name and password

If you are working with an IPC, you can find more information on logging in to a system in the Windows 10 IoT Enterprise (LTSB/LTSC) documentation in the General information chapter.

Apply

The settings are applied.

Enable Multiuser

Turns on the multiuser function for the System Manager.

Multiuser URL

Displays the multiuser URL for the Remote Repository or offers the possibility to change it.

Init

Initializes the multiuser function.

Connect with current user database

Connects the project with a user database.

Enable AML IDs

Turns on the support of AML IDs. The AML IDs are stored in the project.

UTF-8 Encoding

The ADS Symbolic uses UTF-8 encoding (this option is fixed from version 3.1.4026, so this option is omitted from this version).

Enable Simulation

Activates simulation mode for the entire project.

Encryption Key

Encryption of the boot file

• “None”
• “User DB Key”

Project (.tszip)

Saves the TwinCAT 3 project only in the archive on the target system.

Solution (.tnzip)

Saves the entire solution in the archive on the target system.
