Selection of the analog signal type, index 0x3800:0n
In the delivery state all analog input channels of the EPI4374 are set for analog voltage measurement (-10 V …+10 V). All analog outputs generate signals in the range from -10 V …+10 V.
NOTICE | ||
Setting the correct signal type before connecting the sensors Set the correct signal type before connecting the sensors! | ||

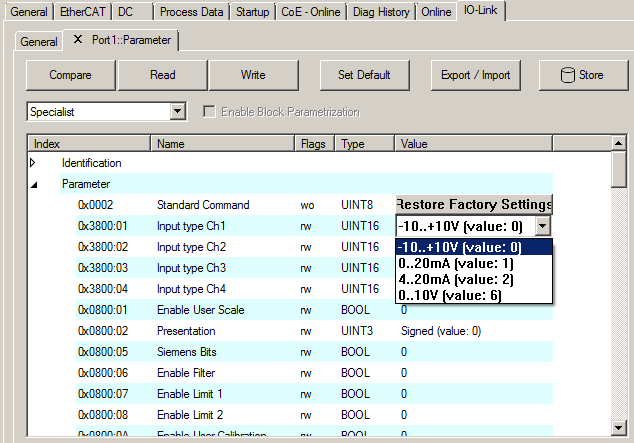

This setting can be set individually for each channel in parameter 0x3800:0n (see the figure below). Changes become effective immediately after writing the parameter.
