Selection of the analog signal type, index 0x3800:0n
In delivery state, all channels of the EPI31x4, ERI31x4 are set for analog voltage measurement (-10 V …+10 V).
NOTICE | ||
Setting the correct signal type before connecting the sensors Set the correct signal type before connecting the sensors! | ||

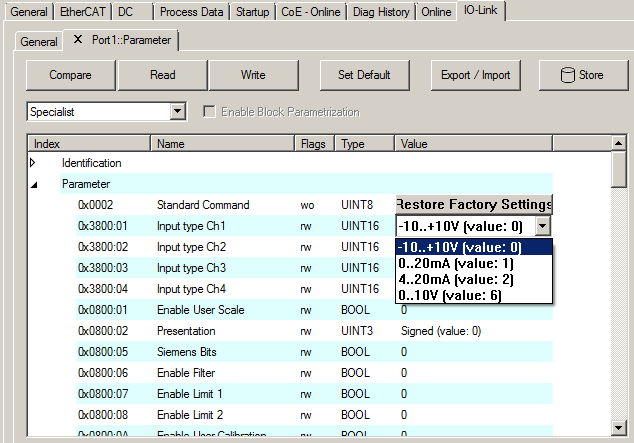

This setting can be set individually for each channel in parameter 0x3800:0n (see the figure below). Changes become effective immediately after writing the parameter.
