IO-Link status LED

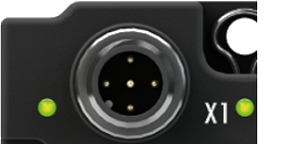

IO-Link Device status LED (narrow housing) |
IO-Link Device status LED (wide housing) |
LED display
LED | Display | Meaning |
|---|---|---|
IO-Link status LED (X1) | off | IO-Link communication inactive |
flashes green (1Hz) | IO-Link communication active | |
red illuminated | Short circuit on C/Q line or overheating |
