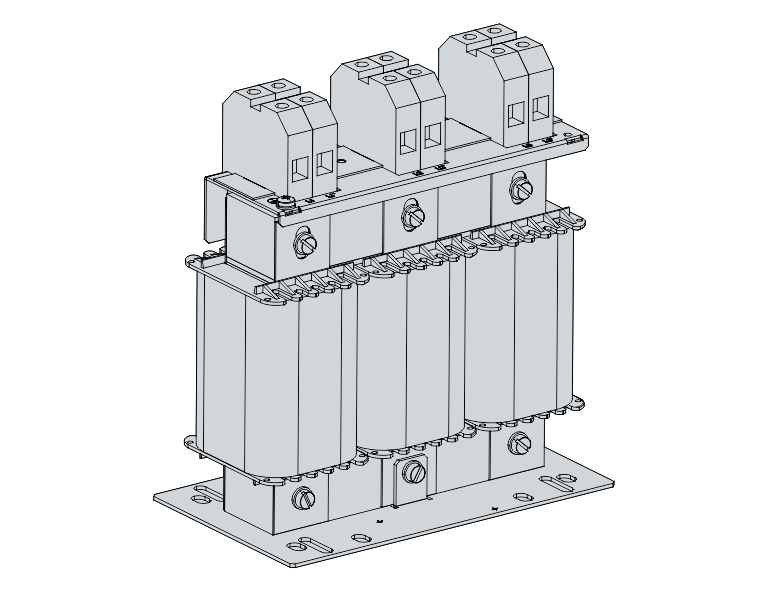

Mains choke

Mains chokes are used to reduce the rate of rise and the amplitude of the charging currents in the drive inverter. Lower amplitudes protect the drive inverter's power semiconductors and intermediate circuit capacitor and extend service life. In addition, the load on the grid caused by harmonics is reduced.
Various parameters determine whether mains chokes are suitable for use:
- network impedance or short-circuit current of the power supply network
- total length of the motor cables
- required EMC category in accordance with IEC 61800-3
- permissible grid interference
- differences in grid conditions at the end customer's site compared to during commissioning
- future changes to the system
Mains chokes provide additional protection when parameters are unknown, as they decouple the mains and the drive system, thereby protecting the device.
When installing the mains choke, please follow this sequence: The mains choke is mounted on the input side of the power supply module and, if an additional mains filter is used, is positioned before the filter (i.e., on the side of the mains fuse and, if applicable, the mains contactor).
For further information , read the original operating instructions for the mains chokes from the AX2090-ND80-0xxx series.
