Determining the motor type
If a motor has no electronic name plate or the offer to scan for motors was declined, the motor type has to be entered manually in the TCDriveManager.
|
|
Opening the TCDriveManagers
In the Solution Explorer, open I/O → Devices → Device 1 → Drive 5 (1). Open the Configuration tab (2). |
→ The TCDriveManager is open.
|
|

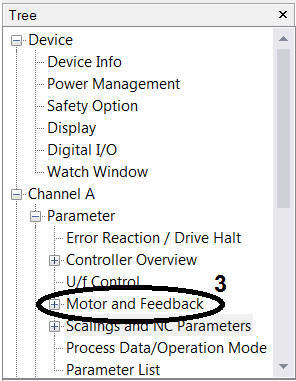

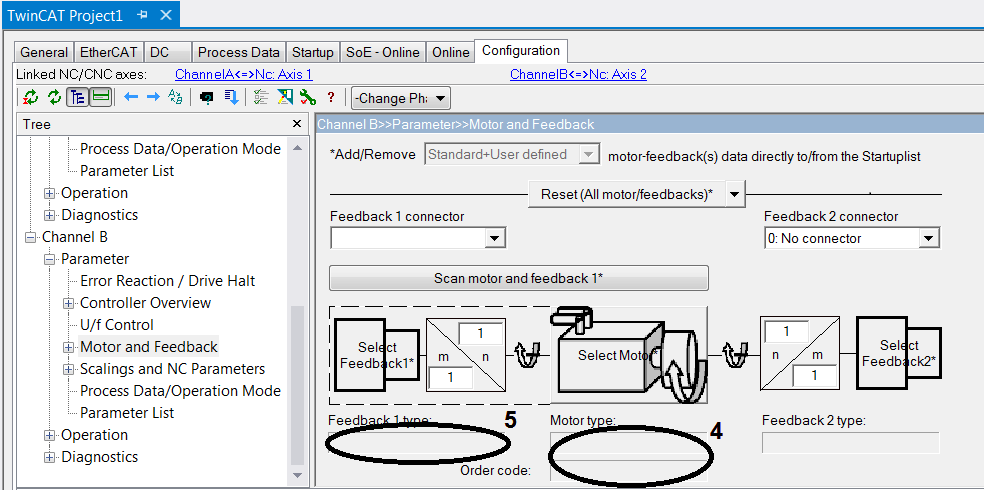

Motor settings Under the Configuration tab you will see a tree structure on the left-hand side, which can be used for all the required settings. To check or set the motor type, edit the motor and feedback settings (3). Open either Channel A or Channel B → Parameter → Motor and Feedback (3). |
|
|
The motor and feedback settings appear to the right of the tree.
If the fields Motor type (4) and Feedback 1 type (5) are empty, this may have two reasons: The motor does not have an electronic name plate: Determine the motor type without electronic name plate The motor has an electronic name plate that was not read: Determine the motor type with an electronic name plate that was not read |
