Determine the motor type without electronic name plate

Determine the motor type without electronic name plate 1:

Press the Select Motor button to add the motor type.
This opens a selection window that lists all the motor type versions and their features.

Determine the motor type without electronic name plate 2:

Look for the motor of your drive in the list.

Confirm the selection with OK.
Another window appears, in which you can make advanced settings.

Determine the motor type without electronic name plate 3:

Make the required settings.

Confirm the selection with OK.

Determine the motor type without electronic name plate 4:

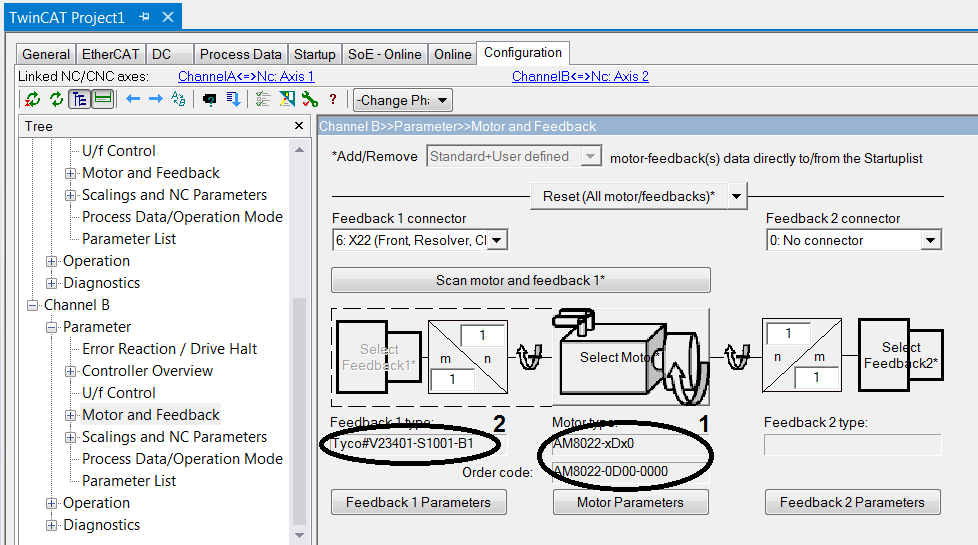

Selecting a motor type makes it appear in the Motor type field (1). The field Feedback 1 type (2) is completed automatically, since for each motor type a corresponding feedback type is stored in the TCDriveManager.



Determine the motor type without electronic name plate 5:

Once the motor type has been specified, a further query appears relating to the parameters of the axis configuration.



If you confirm this message with OK, you will be directed to the corresponding settings. See Create axis configuration.



→ The motor type is set.
