Configuration
To configure the modulo function, proceed as follows:

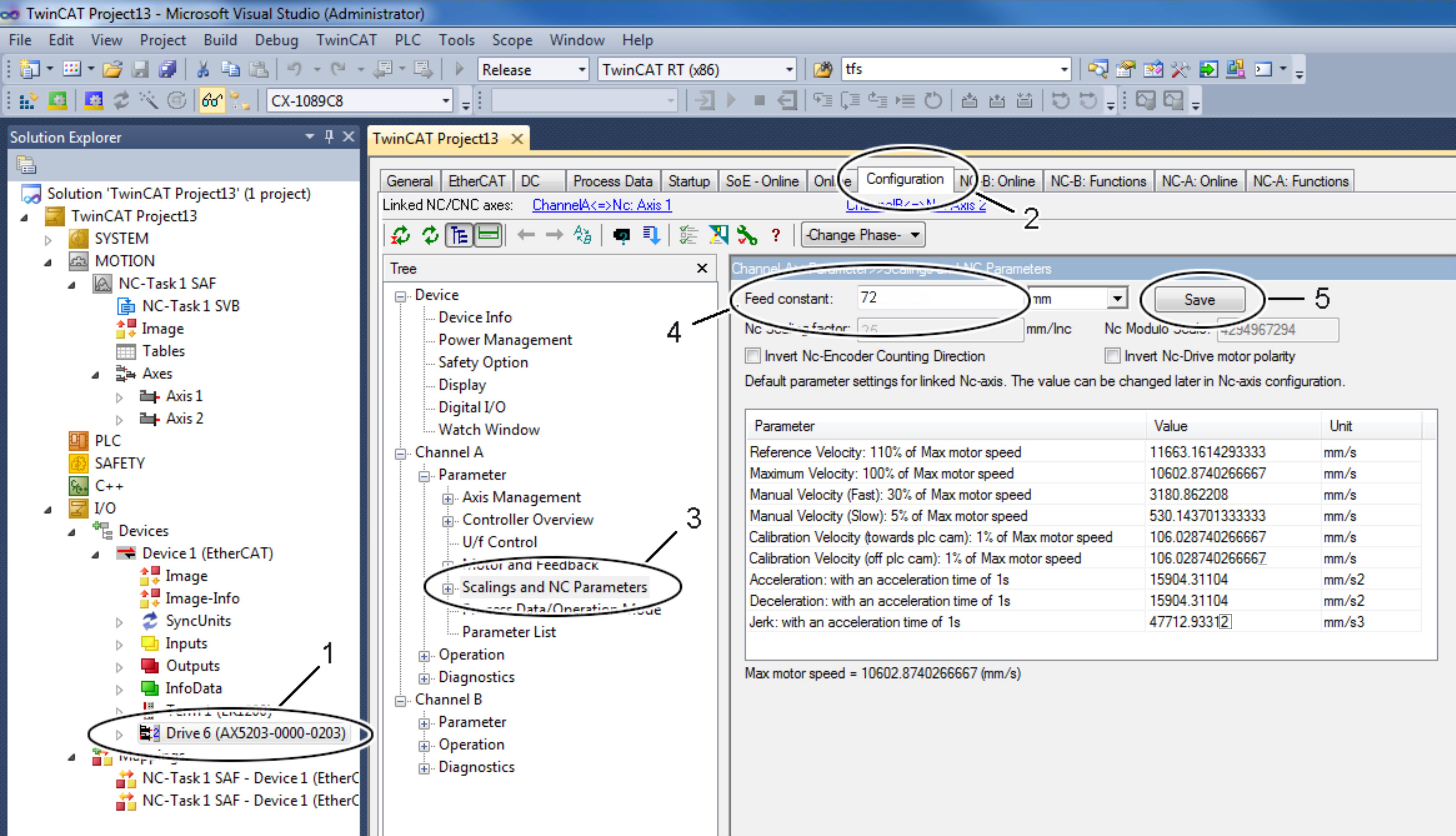

![Configuration 1:](Images/png/9007200020665739__Web.png)
- Select the device “AX5203” (1).
- Open the TCDriveManager (2).
- Select the item “Scalings and NC Parameters” (3) for channel A.
- Define the feed constant (4).
- Complete the input with “Save” (5).
![Configuration 2:](Images/png/766178699__Web.png)
- Confirm the message with “OK” (6).
![Configuration 3:](Images/png/9007200028202251__Web.png)
- Select the device “AX5203” (7).
- Open the TCDriveManager (8).
- Select the item “Modulo value” (9).
- Define the modulo range in the preset unit (11).
The TcDriveManager subsequently calculates the modulo value in the unit increments (10).
Complete the input with “Accept” (12).
![Configuration 4:](Images/png/9007200020921483__Web.png)
- Confirm the message with “OK” (12).
- Repeat the procedure for the second channel (“Channel B”).
- Activate the configuration.
- If no modulo data have been saved in the servo drive yet, error code F350 (“No saved data could be loaded”) appears on initialization; see also section Exchange.
- The reset functionality is described in section Resetting the modulo error.
