X01 for single-phase devices
Valid for:
- All single-phase devices in the AF1000 series
- AF11xx-1xxx
- AF12xx-1xxx

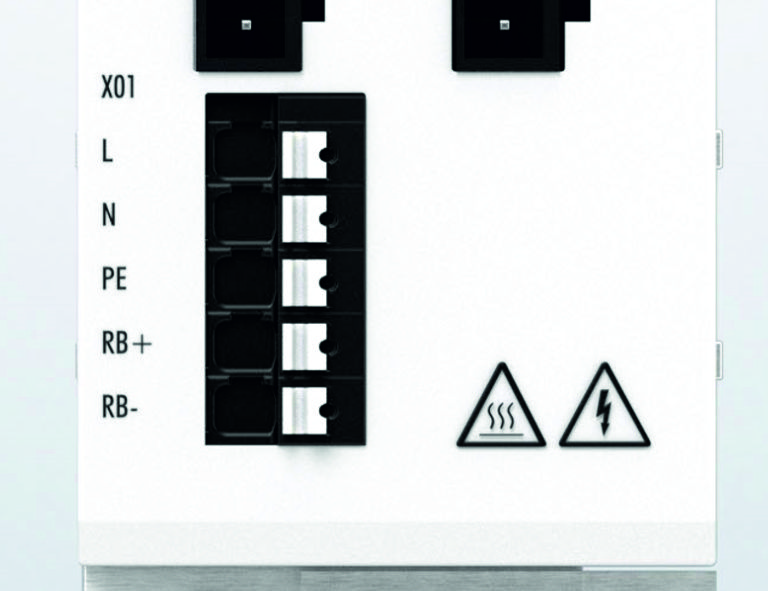

Network connection on connection strip X01
Feature | Implementation |
|---|---|
Connection type | Connection strip |
Contact type | Direct plug-in technique |
Number of contacts | 5-pin |
Connectable conductors at this connection
|
Technical parameter |
Unit |
min. |
max. |
|---|---|---|---|
Clamping range | mm² | 0.34 | 4 |
Conductor connection cross-section AWG | AWG | 12 | 20 |
solid wire H05(07) V-U | mm² | 0.5 | 2.5 |
stranded wire H05(07) V-U | mm² | 0.5 | 4 |
with AEH with collar DIN46 228/4 | mm² | 0.34 | 2.5 |
with wire end sleeve DIN46 228/1 | mm² | 0.5 | 2.5 |
If single wires or strands are used, the wiring route from the filter to the mains connection must be realized with twisted wires or strands.
Contact assignment at this connection
Terminal point | Connection |
|---|---|
L | Phase L |
N | Neutral conductor N |
PE | Protective conductor, PE |
RB+ | External braking resistor + |
RB- | External braking resistor - |
