X01 for three-phase devices

Valid for:

Network connection on connection strip X01

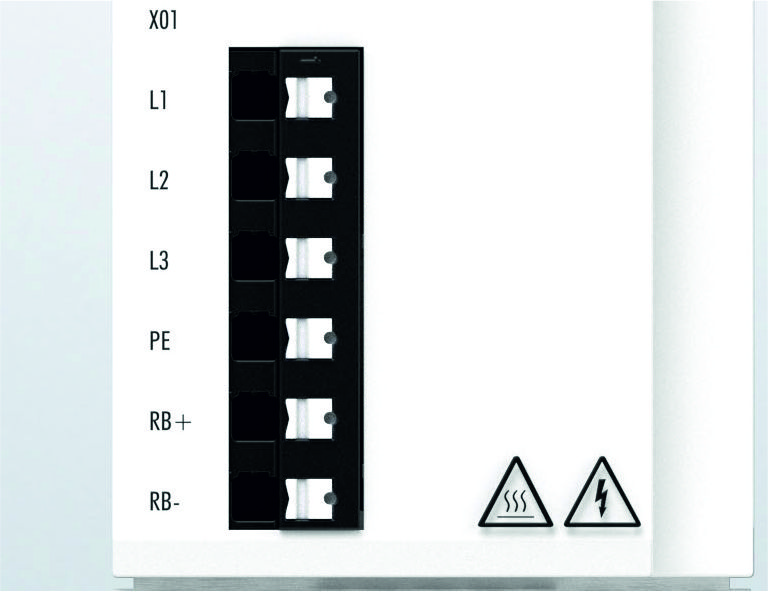

X01 for three-phase devices 1:

Feature

Implementation

Connection type

Connection strip

Contact type

Direct plug-in technique

Number of contacts

6-pin

Connectable conductors at this connection

Technical parameter

Unit

min.

max.

Clamping range

mm²

0.34

4

Conductor connection cross-section AWG

AWG

12

20

solid wire H05(07) V-U

mm²

0.5

2.5

stranded wire H05(07) V-U

mm²

0.5

4

with AEH with collar DIN46 228/4

mm²

0.34

2.5

with wire end sleeve DIN46 228/1

mm²

0.5

2.5

If single wires or strands are used, the wiring route from the filter to the mains connection must be realized with twisted wires or strands.

Contact assignment at this connection

Terminal point

Connection

L1

Phase L1

L2

Phase L2

L3

Phase L3

PE

Protective conductor, PE

RB+

External braking resistor +

RB-

External braking resistor -
