Standard monitoring for axes

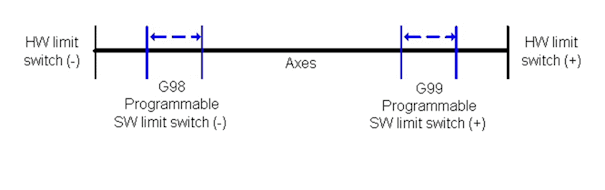

Software limit switches

Up to now it has been possible to use axis-specific software limit switches for workspace monitoring. For every axis, a minimum and a maximum limit can be defined to limit the travel range of an axis. The software limit switches' positions can be defined by parameter definition in the axis configuration list [AXIS] or directly in the NC program.
