Creating an HMI project

The Plastic Application Templates can be used to create projects in TwinCAT version 4026 via the Visual Studio dialog. The following instructions show an example of how a new HMI project can be created.

To create a project, the workloads or packages must already have been installed via the TwinCAT Package Manager.

1. Open the TwinCAT XAE Shell (or the Visual Studio version in which you have integrated your TwinCAT installation).
Creating an HMI project 1:

2. In the menu under File (1) > New, select the option to create a new project (2).
Creating an HMI project 2:

3. In the following dialog, scroll (3) in the list of project variants to the TwinCAT HMI Plastic Application projects.

4. Select the preferred variant (4) for your development.
Creating an HMI project 3:

5. Press Next (5) to create the project.

6. Assign a project name (6) and confirm the creation of the project with Create (7).
Creating an HMI project 4:

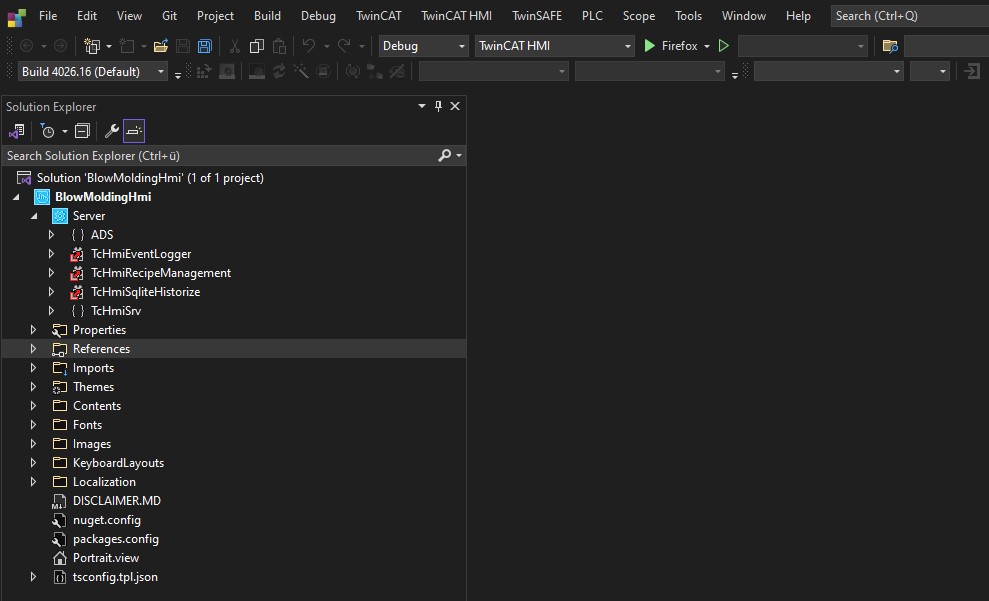

You have successfully created your TwinCAT HMI project.
Creating an HMI project 5:

	Server not yet initialized The TwinCAT HMI project is created without server configuration. Automatic initialization (see TF8550 InitTemplate) starts as soon as you load a view in the Designer for the first time or start the TwinCAT HMI Liveview.
