Main extruder

MainExtruder.content

The main extruder page contains the following components:

1. Display of the melt pressure as a value and in the graph.
2. Display of the melt temperature as a value and in the graph.
3. Display of the current as a value and in the graph.
4. Illustration of the main extruder with the associated temperature zones for displaying the actual values and setting option for the setpoints (is configured via the Layout page of the temperatures).
5. Area for displaying and setting the turn rate
• Display of the set turn rate.
• Button for copying the currently set turn rate to the production turn rate.
• Display and setting of the production turn rate.
• Button for selecting the production turn rate.
• Display and setting of the basic turn rate.
• Button for selecting the basic turn rate.
• Display of actual value as numerical value and in graph with reference to basic and production turn rate.
6. Area for navigation to other related pages.
7. Setting the material from the main extruder.

MainExtruder_Settings.content

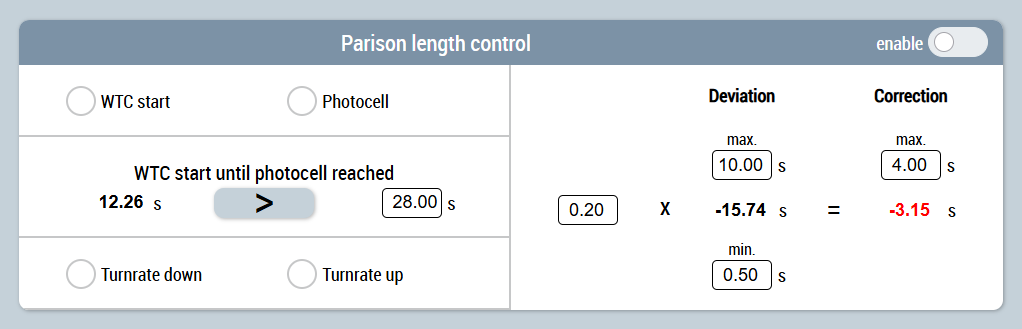

In addition to the main extruder page, there is also an additional page for the slider area. The page enables parison length control settings.

Available from version 12.6.0
