Quick start

To start, create or open a TwinCAT HMI project.

Installation

Install the NuGet package Beckhoff.TwinCAT.HMI.Plastic.Injection.Data via the NuGet Package Manager.

FB_ShotScope instance in PLC project is required to use this server extension.

Configuring the TcInjectionData

  1. Open the server configuration page.
  2. Go to the TcInjectionData tab.

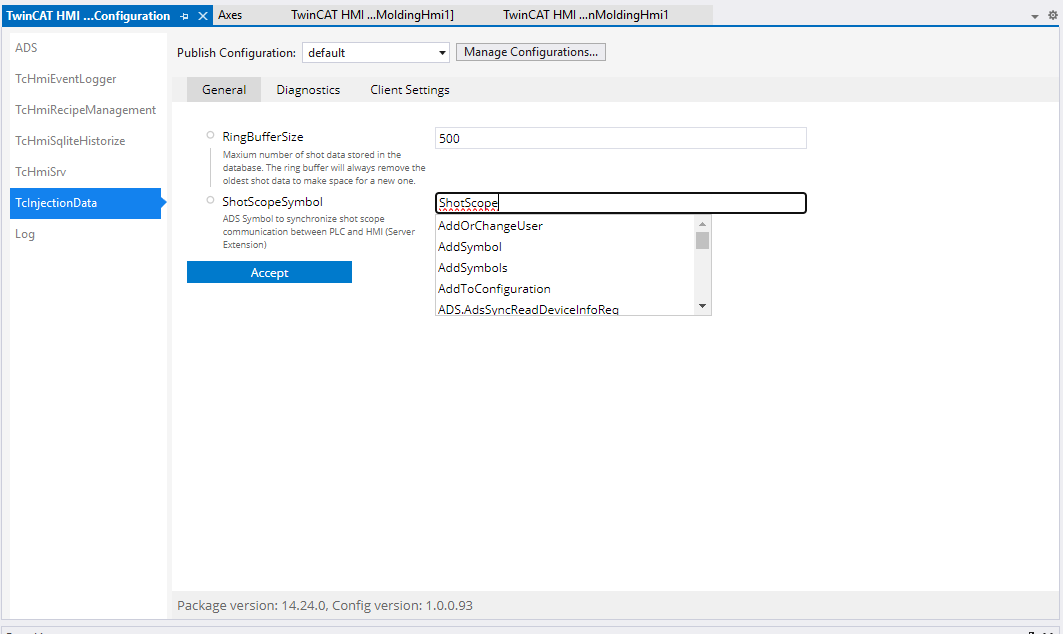

    3. Quick start 1:
  3. Set RingBuffeSize.
  4. Select mapped symbol of type FB_ShotScope for ShotScopeSymbol property.
