Configure curve display

Users with ‘Configure’ access right can start this dialog from the menu bar. On this dialog the user can configure up to 5 Y-axis groups.

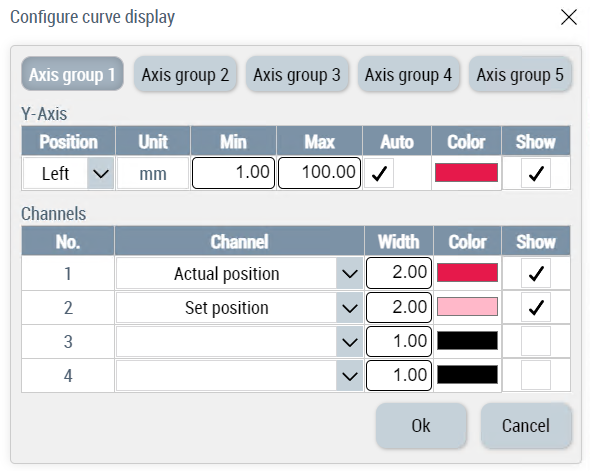

Configure curve display 1:

Each axis group has one Y-axis to configure.

A Y-axis can have the below settings:

  1. Axis position this can be either ‘Left’ or ‘Right’
  2. Unit text.
  3. Minimum value.
  4. Maximum value.
  5. Auto scale.
  6. Color of axis.
  7. Show or hide axis.

Every axis group can have up to 4 curves.

Every curve can be configured with the following settings:

  1. Scope channel of the curve. This list of possible channels is populated from .scopeex file that is configured in FB_ShotScope function block in PLC.
  2. Line width of each curve.
  3. Color of each curve.
  4. Show or hide the curve.
