Installation

The TF8550 Plastic HMI Framework can be installed under TwinCAT 4026 via the TwinCAT Package Manager. A separate workload is available for this purpose.

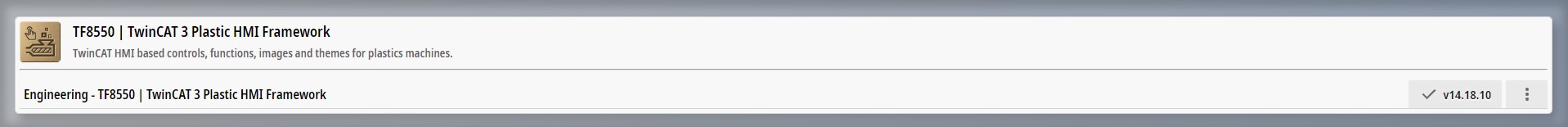

Installation 1:
Installation 2:

Usage in TwinCAT HMI v12.x

For use under TwinCAt HMI v12.x please contact BranchePlastic@beckhoff.com directly.

Integration into TwinCAT HMI Project

1. Beckhoff.TwinCAT.HMI.Plastic packages are available in the Beckhoff Offline Packages Repository, configured in the NuGet package management.
Check for more information about NuGet package management in TwinCAT HMI projects.
2. Install the Beckhoff.TwinCAT.HMI.Plastic package to include all Plastic packages available or pick the sub-packages (e.g. Beckhoff.TwinCAT.HMI.Plastic.Controls) you want to use.
Once the package is installed, all controls, function and other resources (dependent on your decision in step 2) will be available in your project.
