FB_MTP_BinServParam

The function block FB_MTP_BinServParam is an object for binary parameter value specifications from different sources: internal PLC logic and manual operation (e.g. via OPC UA). The values are managed via the state machine Service Mode.

The output value VOut corresponds to the current value specification limited to limit values and can be used within a service (see ParameterElements).

Applying values

Each parameter follows the same procedure when applying values. The values are applied in two steps:

Preparing the value
Applying of the value

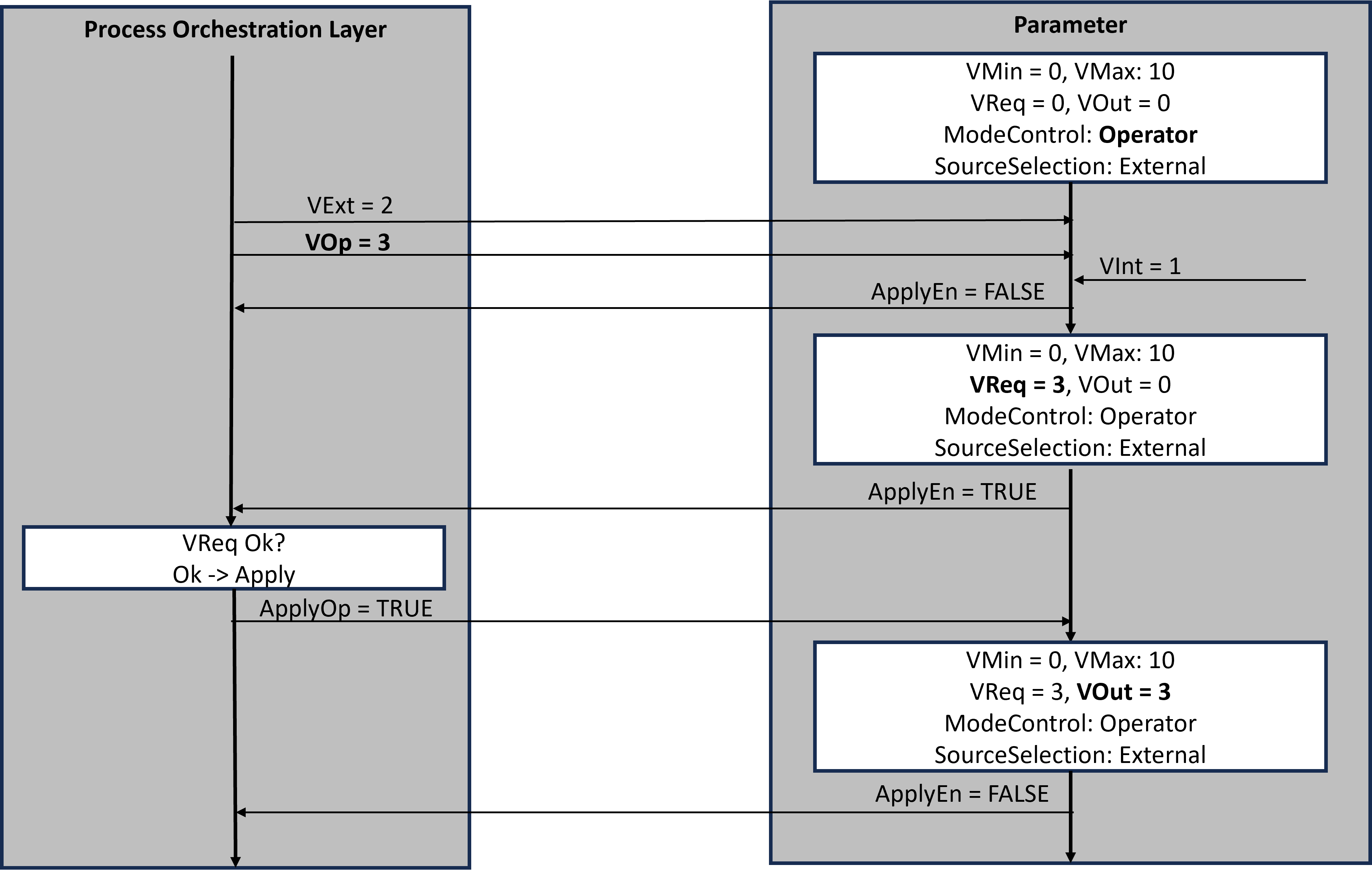

The preparation of the value begins with the value specification via the variables VOp, VInt, VExt. Depending on the state of the Service Mode, a value is selected and limited via the value limit. The resulting requested value is displayed via the variable VReq.

To apply the value, the enabling is signaled on the PLC side via the variable ApplyEn = TRUE. The application can then be confirmed via variables ApplyOp, ApplyInt or ApplyExt, depending on the state of Service Mode. After successful application, the value of the variable VOut corresponds to the value of VReq.

Values can also be applied at service level using the same procedure. See the Parameters section at FB_MTP_ServiceControl.

Operation mode synchronization with higher-level service

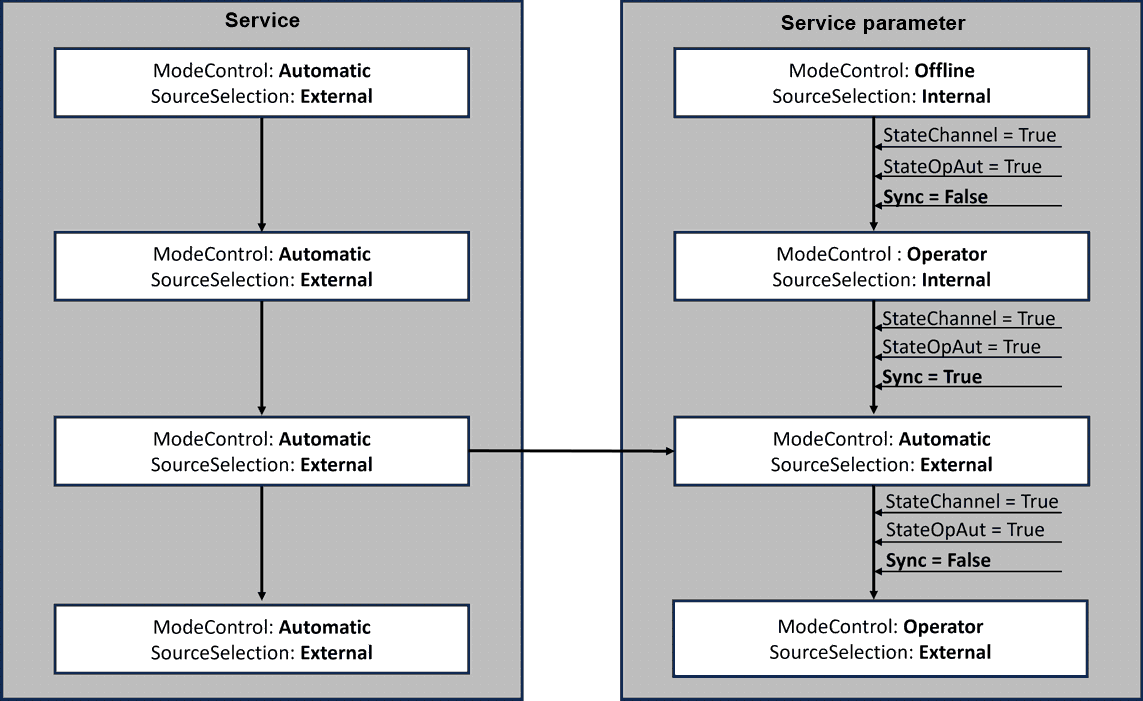

The Service Mode of the parameter can be synchronized with the higher-level service via the variable Sync. The input variables for controlling the state machine are ignored and the state machine of the parameter automatically assumes the state of the Service Mode of the service.

Further characteristics

Inputs

Name	Type	Description	OPC UA access
TagName	STRING	Name of the interface	-
TagDescription	STRING	Description of the interface	-
WQC	BYTE	Worst Quality Code	Read
OSLevel	BYTE	Level must be defined for system. Value 0 is reserved for local operation.	Read/write
State* Src*		See Service Mode
ApplyEn	BOOL	Enable Apply parameter: 1: Parameters can be applied. 0: Parameters cannot be applied.	Read
Applylnt	BOOL	`Internal` switching request to apply requested parameters (relevant if `StateAutAct = TRUE` and `SrcIntAct = TRUE`): 1: Apply value. 0: Do not apply value	Read
sync	BOOL	Operation mode synchronization: 1: Synchronize with service. 0: Independent operation	Read/write
VInt	BOOL	`Internal` value specification (relevant if `StateAutAct = TRUE` and `SrcIntAct = TRUE`)	Read
VState0	STRING	Text for value `VOut = FALSE`	Read
VState1	STRING	Text for value `VOut = TRUE`	Read
VFbk	BOOL	Feedback value	Read

Outputs

Name	Type	Description	OPC UA access
State* Src*		See
Vout	BOOL	Current parameter value	Read

Name

Type

Description

OPC UA access

State*

Src*

See

Vout

BOOL

Current parameter value

Read

External variables

Name	Type	Description	OPC UA access
State* Src*		See Service Mode
ApplyOp	BOOL	`Operator` switching request to apply currently requested parameters (relevant if `StateOpAct = TRUE`): 1: Apply value. 0: Do not apply value	Read/write
ApplyExt	BOOL	`External` switching request to apply currently requested parameters (relevant if `SrcExtAct = TRUE` and `StateAutAct = TRUE`): 1: Apply value. 0: Do not apply value	Read/write
VOp	REAL	`Operator` value specification (relevant if `StateOpAct = TRUE`)	Read/write
VExt	REAL	`External` value specification (relevant if `SrcExtAct = TRUE` and `StateAutAct = TRUE`)	Read/write
