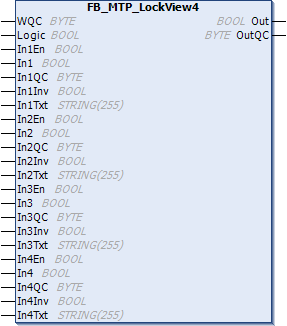

FB_MTP_LockView4

The function block FB_MTP_LockView4 is an object for visualizing a basic logical operation AND/OR with four inputs. This is made available via OPC UA.

Each input can be enabled *En, inverted *Inv and described with a text *Txt. Each input also contains a quality code *QC. It describes the conditions under which the value of the interface was recorded and how trustworthy this value is.

The inputs can be evaluated as AND-logic (Logic = TRUE) or as OR-logic (Logic = FALSE). The linking result from the inputs is output at Out . Only enabled inputs are taken into account for this. The result of the QC inputs is output at OutQC.

Further characteristics

Name of the object

Object description

WQC

Inputs

Name	Type	Description	OPC UA access
WQC	BYTE	Worst Quality Code	Read
Logic	BOOL	Logical operation: 0: `OR` 1: `AND`	Read
In1En	BOOL	Enable input 1: 0: Input not enabled. 1: Input enabled	Read
In1	BOOL	Input 1 - value	Read
In1QC	BYTE	Input 1 – `Qualitiy Code`	Read
In1lnv	BOOL	Invert input 1: 0: Not inverted 1: Inverted	Read
In1Txt	STRING	Input 1 - description text	Read
In2En	BOOL	Enable input 2: 0: Input not enabled. 1: Input enabled.	Read
In2	BOOL	Input 2 - value	Read
In2QC	BYTE	Input 2 – `Qualitiy Code`	Read
In2Inv	BOOL	Invert input 2: 0: Not inverted 1: Inverted	Read
In2Txt	STRING	Input 2 - description text	Read
In3En	BOOL	Enable input 3: 0: Input not enabled. 1: Input enabled.	Read
In3	BOOL	Input 3 - value	Read
In3QC	BYTE	Input 3 – `Qualitiy Code`	Read
In3Inv	BOOL	Invert input 3: 0: Not inverted 1: Inverted	Read
In3Txt	STRING	Input 3 - description text	Read
In4En	BOOL	Enable input 4: 0: Input not enabled. 1: Input enabled.	Read
In4	BOOL	Input 4 - value	Read
In4QC	BYTE	Input 4 – `Qualitiy Code`	Read
In4Inv	BOOL	Invert input 4: 0: Not inverted 1: Inverted	Read
In4Txt	STRING	Input 4 - description text	Read

Outputs

Name	Type	Description	OPC UA access
Out	BOOL	Output of the link result	Read
OutQC	BOOL	QC of the link result	Read
