Groups
All lamps can be assigned to several groups. The light intensity is determined by the highest light value of all groups:
Three individual lamps can be seen in the first illustration. The set value of group 3 is 70% while that of group 4 is 80%. The basic value of both groups is 30%. One group is assigned to each of the sensors (group 3 and group 4).
In the next illustration, the sensor in group 3 detects presence. As a result, the lamps in group 3 are set to the set value 70%.
The sensor in group 4 now also detects presence. The lamps in group 4 are set to the set value 80%.
In the following illustration, group 4 no longer has presence. The right-hand lamp is set to the basic value on expiry of the 1st overrun time and the middle lamp is reduced to the set value of group 3.
The second overrun time has now expired for group 4. The right-hand lamp is switched off.

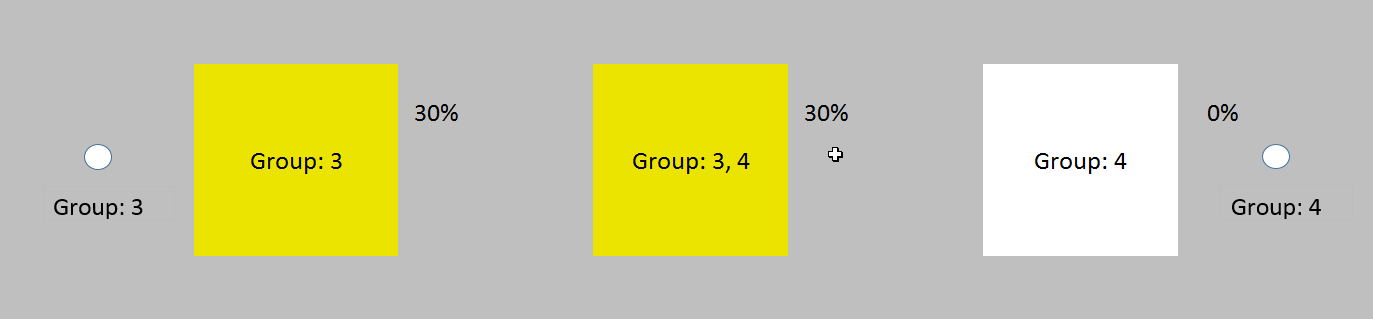

In the last illustration, group 3 no longer has presence and the 1st overrun time has expired. The left-hand and middle lamps are set to the basic value. On expiry of the 2nd overrun time these are also switched off.
