Warnings

If a yellow warning signal is displayed on the lamps or sensors, the controller has detected possible malfunction by a device.

As can be seen in the following figures, further warning signals are routed to the corresponding devices via the associated DALI lines.

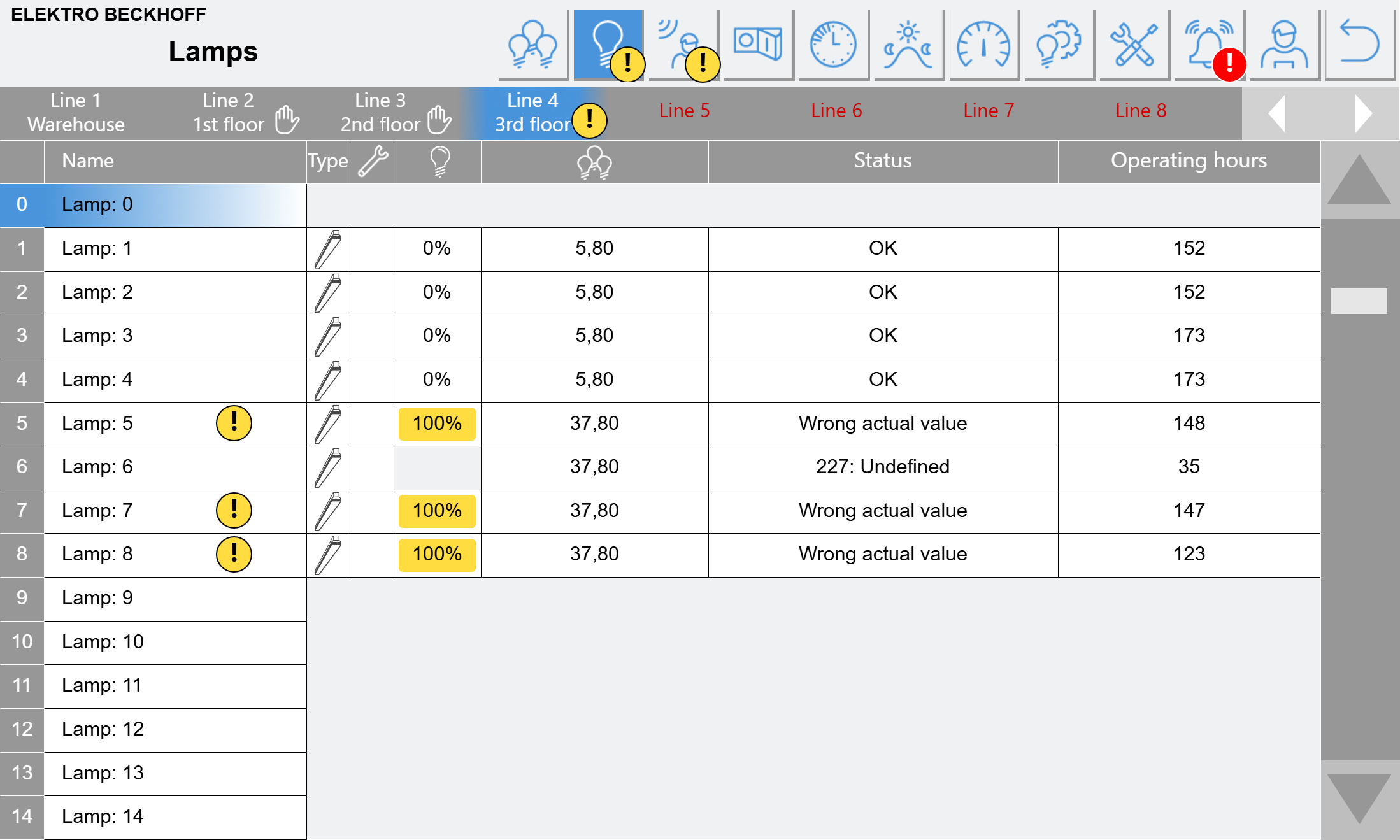

Such a warning is displayed for the lamps if they do not accept their set dimming value after several attempts.

This can happen if a corresponding parameter in the control gear is set incorrectly.

In this example, the maximum value of the lamp is below the setpoint of 100%:

In the case of the sensors, a daily check is carried out to see whether a sensor has detected a presence outside the set operating time (yellow bar).

If this is the case, this warning is issued and you must evaluate it yourself by taking a look at the "statistics".

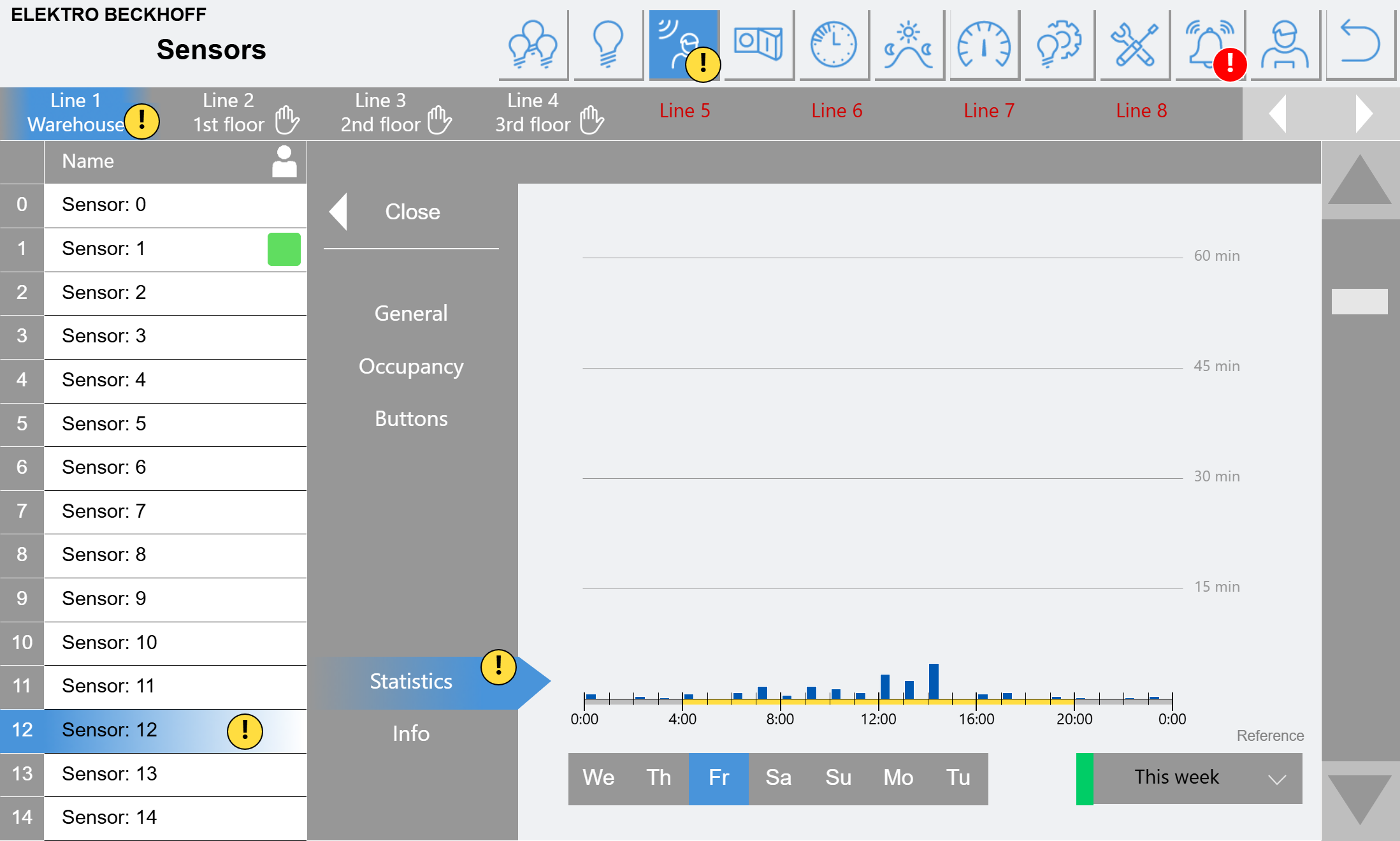

The following example shows a defective sensor that provides such a false presence on a daily basis.

The check for this error can be disabled separately for each sensor.
