Synchronizing filtered data, example with Exclude

In the following example, data from a snapshot is synchronized:

All changes from the snapshot should be transferred to the controller, except for symbols with operating data with the name nActiveTimeElapsed and nStateChangeCount.

Connecting to the target system and loading a snapshot

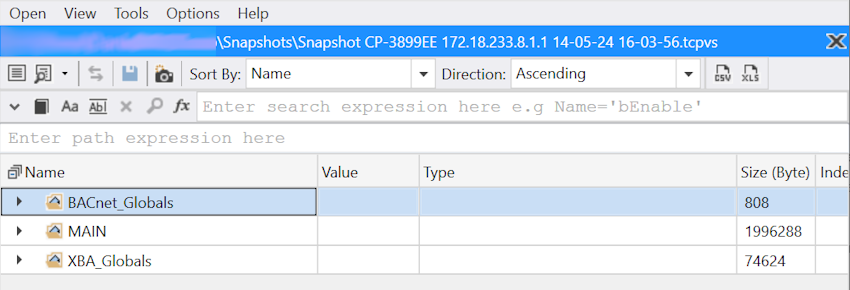

1. Open the snapshot with data backup of the affected target system (PLC).
Synchronizing filtered data, example with Exclude 1:

2. Select BACnet_Globals.
Synchronizing filtered data, example with Exclude 2:

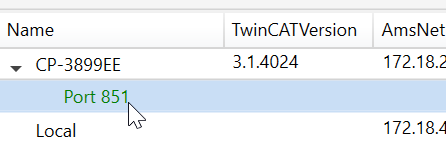

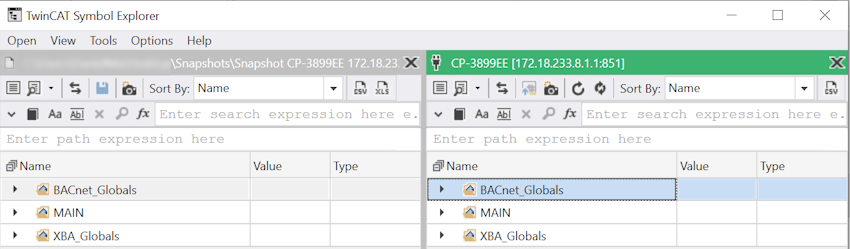

3. Log in to the target system in the Symbol Explorer.
Synchronizing filtered data, example with Exclude 3:

Synchronizing filtered data, example with Exclude 4:

Synchronize and snapshot -> target system with filtered symbols

1. Synchronize the data from the snapshot to the target system by clicking the Sync button in the main window of the snapshot.
Synchronizing filtered data, example with Exclude 5:

Synchronizing filtered data, example with Exclude 5:

Suggestion for synchronization: 43 symbols are found for synchronization.

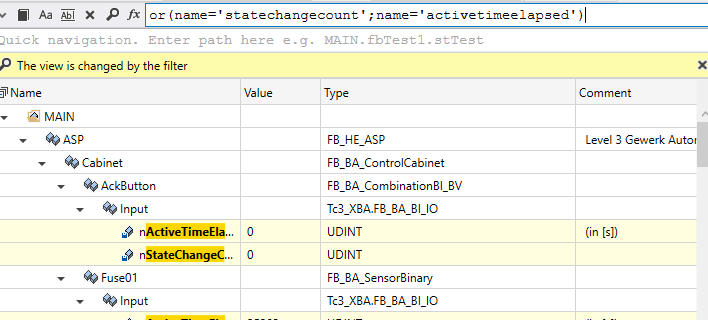

2. Set filters on the symbols nStateChangeCount and nActiveTimeElapsed in the snapshot.
Filter:
or(name='statechangecount';name='activetimeelapsed')
Synchronizing filtered data, example with Exclude 6:

Synchronizing filtered data, example with Exclude 6:

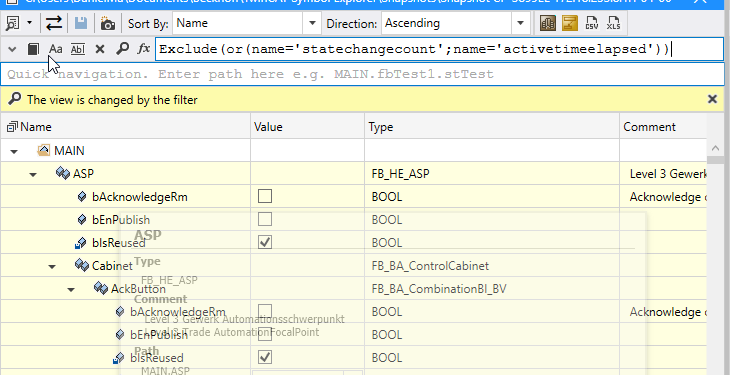

3. Negate the selection using the Exclude function.

All symbols except nStateChangeCount and nActiveTimeElapsed are displayed.
Synchronizing filtered data, example with Exclude 7:

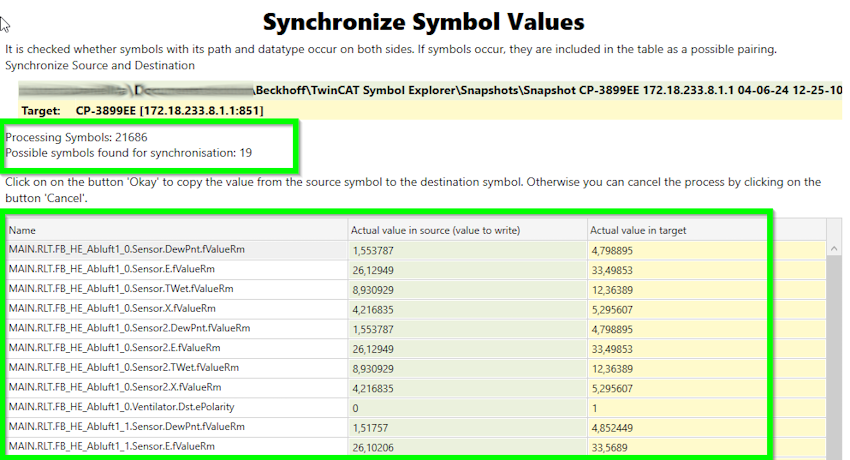

4. Click on the Sync button again.

Now only 19 symbols are available for synchronization. Symbols that receive the operating data have been successfully filtered out
Synchronizing filtered data, example with Exclude 8:

Synchronizing filtered data, example with Exclude 8:
