Tc3_XBA

The Tc3_XBA PLC library is an essential element of the TF8040 TwinCAT Function.
The most important component of this library is the base framework including the site server.

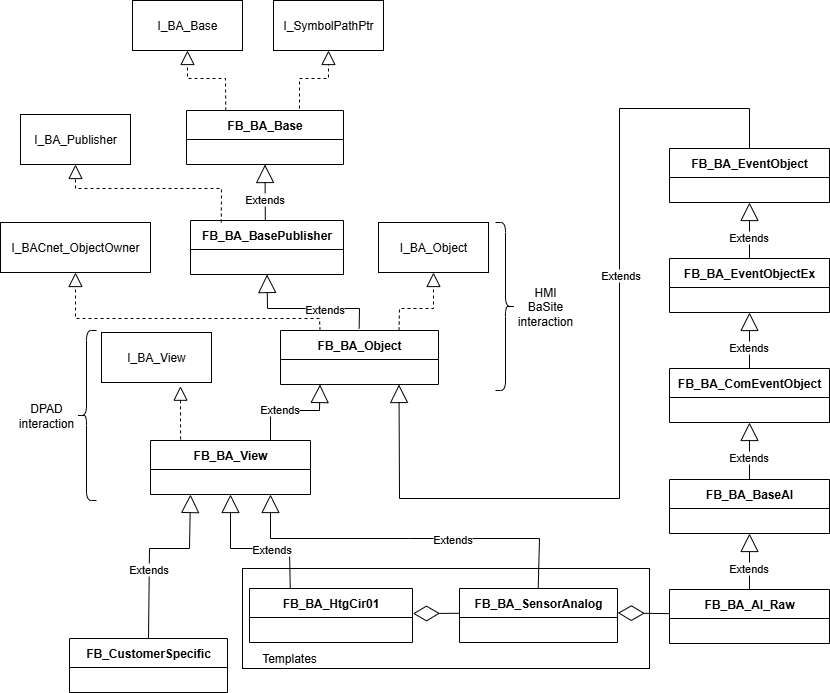

The dependency of individual function blocks and interfaces is shown graphically below so that the inheritance hierarchy can be understood.
