Selecting the target system

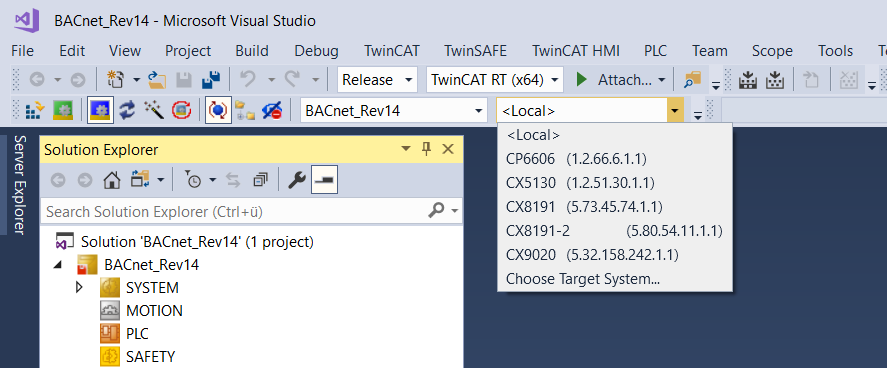

- 1. Select the target system from the list of controllers already connected via an ADS route.

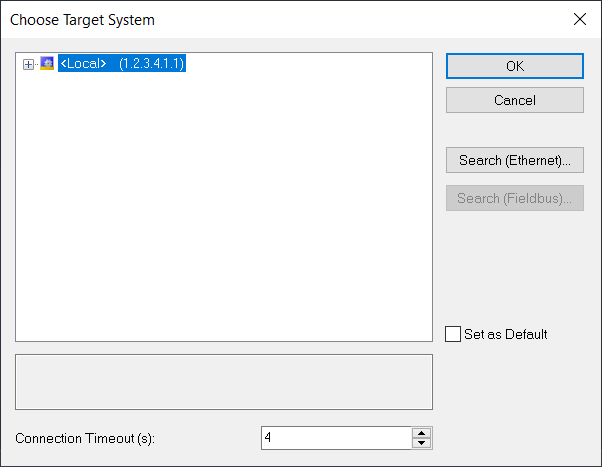

- 2. If no ADS route to the controller exists, select the function Choose Target System.

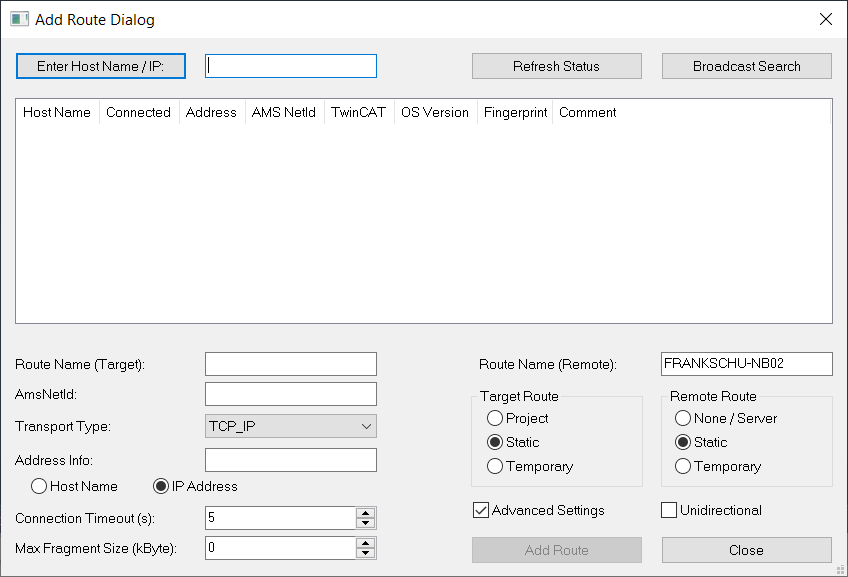

- 3. Select Search (Ethernet) in this dialog.
- 4. Select Broadcast Search.

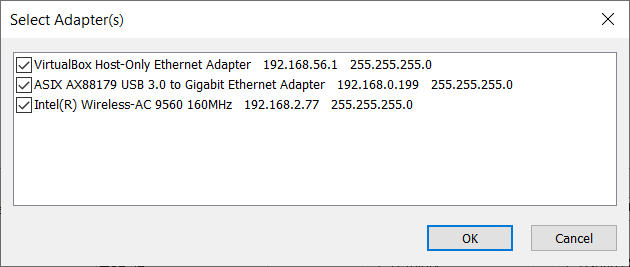

- 5. Select the network adapters which are used to search for controllers.

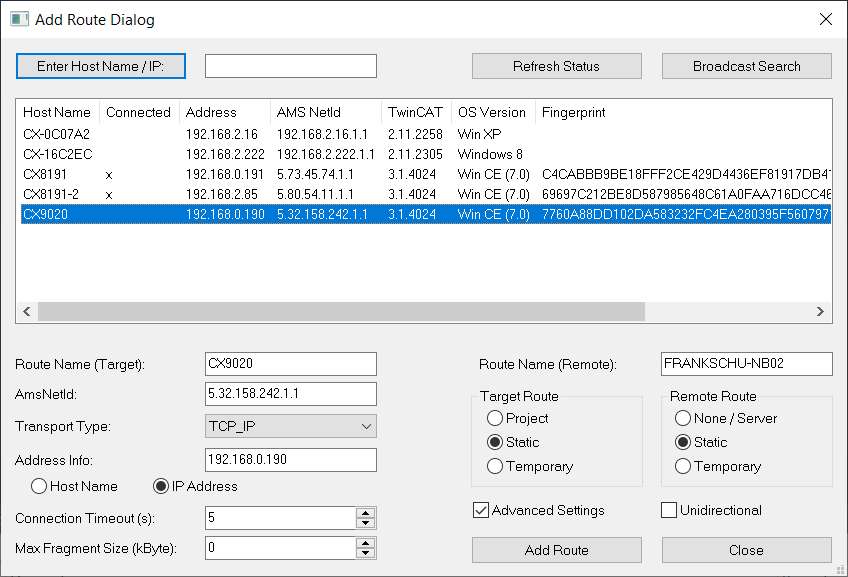

- All available controllers in the network are shown in this list. The letter "x" in the Connected column means that an ADS route has already been set up.
- 6. Select the controller to be used for the BACnet project, select IP Address in the section Address Info and select Add Route.

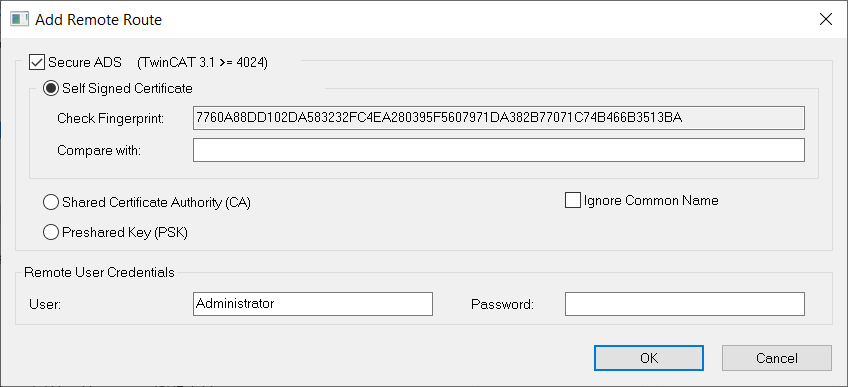

 | It is optionally possible to create a secure ADS route. Please refer to the Beckhoff Information System for further information how to use Secure ADS. |

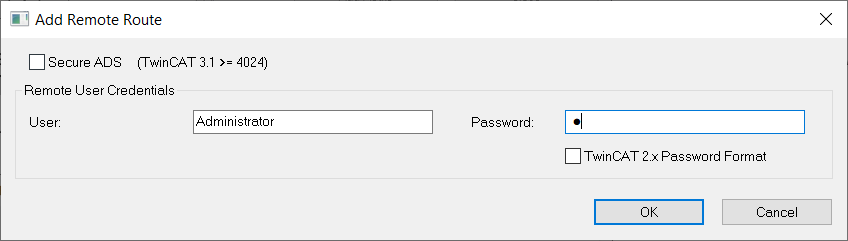

This example uses a regular ADS route. The standard password for the user Administrator is the number 1. We strongly recommend changing the default to a more secure password and document it in the revision documents of the project, at the latest when finishing the project.
The controller is now connected through ADS.

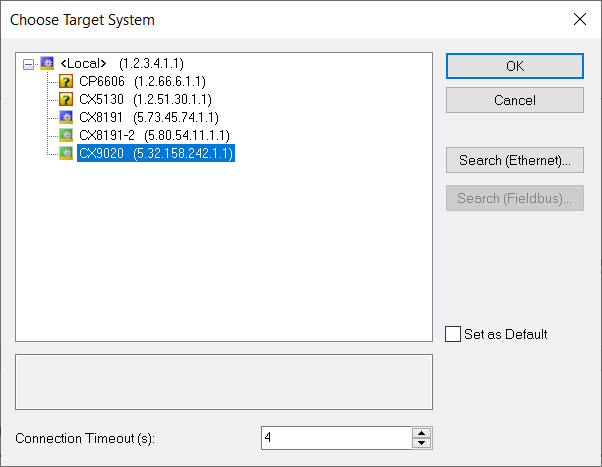

- 7. Close the dialog and select the controller from the list of available target systems.
