RespTriggerMessage

RespTriggerMessage 1:

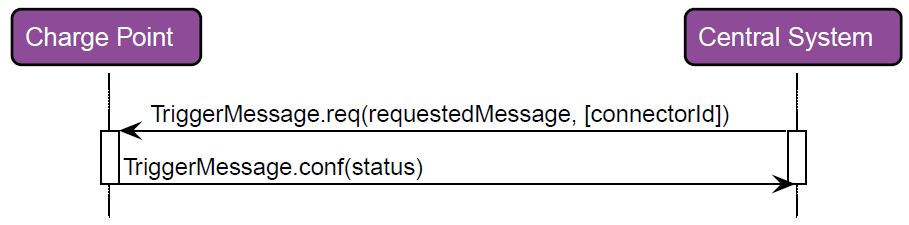

With this method, an OCPP client responds to a Trigger Message request from the corresponding OCPP server.

RespTriggerMessage 2:

Syntax

METHOD RespTriggerMessage : BOOL
VAR_INPUT
    hMessageId : T_OCPP_MessageId;
    eStatus    :E_OCPP1_TriggerMessageStatus;
END_VAR

RespTriggerMessage 3: Return value

Name

Type

Description

RespTriggerMessage

BOOL

The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

RespTriggerMessage 4: Inputs

Name

Type

Description

hMessageId

T_OCPP_MessageId

MessageId of the received message.

eStatus

E_OCPP1_TriggerMessageStatus

Response whether the Charge Point will send the requested message or not.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
