RespGetConfiguration

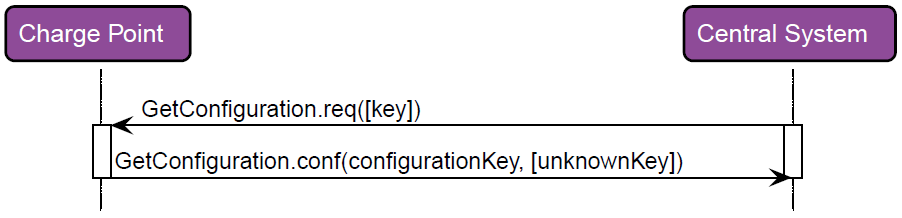

With this method, an OCPP client responds to a Get Configuration request from the corresponding OCPP server.

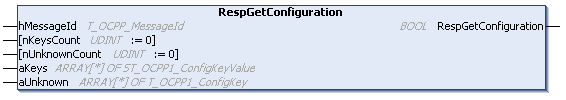

Syntax
METHOD RespGetConfiguration : BOOL
VAR_INPUT
hMessageId : T_OCPP_MessageId;
nKeysCount : UDINT := 0;
nUnknownCount : UDINT := 0;
END_VAR
VAR_IN_OUT CONSTANT
aKeys : ARRAY[*] OF ST_OCPP1_ConfigKeyValue;
aUnknown : ARRAY[*] OF T_OCPP1_ConfigKey;
END_VAR
Return value
Name | Type | Description |
|---|---|---|
RespGetConfiguration | BOOL | The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error. |
Inputs
Name | Type | Description |
|---|---|---|
hMessageId | MessageId of the received message. | |
nKeysCount | UDINT | Number of the following Configuration Keys. |
nUnknownCount | UDINT | Number of the following Unknown Configuration Keys. |
Inputs/outputs
Name | Type | Description |
|---|---|---|
aKeys | ARRAY[*] OF ST_OCPP1_ConfigKeyValue | List of requested or known Configuration Keys. |
aUnknown | ARRAY[*] OF T_OCPP1_ConfigKey | Requested Configuration Keys that are not known. |
Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
