RespClearCache

RespClearCache 1:

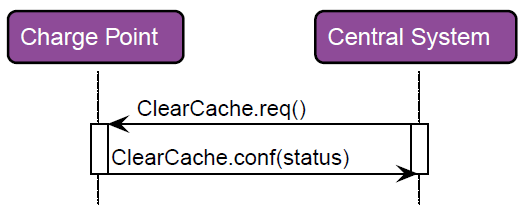

With this method, an OCPP client responds to a Clear Cache request from the corresponding OCPP server.

RespClearCache 2:

Syntax

METHOD RespClearCache : BOOL
VAR_INPUT
    hMessageId : T_OCPP_MessageId;
    eStatus    : E_OCPP1_ClearCacheStatus;
END_VAR

RespClearCache 3: Return value

Name

Type

Description

RespClearCache

BOOL

The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

RespClearCache 4: Inputs

Name

Type

Description

hMessageId

T_OCPP_MessageId

MessageId of the received message.

eStatus

E_OCPP1_ClearCacheStatus

Response whether the Charge Point has implemented the requested clearing of the cache.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
