RecvChangeConfiguration

RecvChangeConfiguration 1:

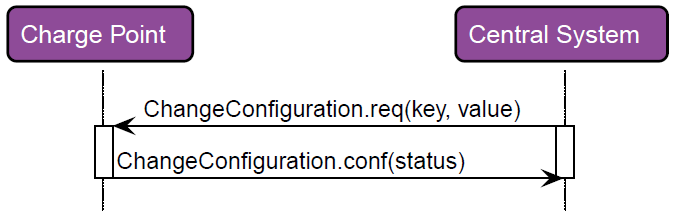

With this method, an OCPP client receives a Change Configuration request from the corresponding OCPP server. To respond to the request, the method RespChangeConfiguration must be called.

RecvChangeConfiguration 2:

Syntax

METHOD RecvChangeConfiguration : BOOL
VAR_OUTPUT
    hMessageId : T_OCPP_MessageId;
    sKey       : T_OCPP1_ConfigKey;
    sValue     : T_OCPP1_ConfigValue;
END_VAR

Return value

Name	Type	Description
RecvChangeConfiguration	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Outputs

Name	Type	Description
hMessageId	T_OCPP_MessageId	MessageId of the received message.
sKey	T_OCPP1_ConfigKey	Name of the Configuration Key to be changed.
eType	T_OCPP1_ConfigValue	New value for the Configuration Key.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
