RecvCancelReservation

RecvCancelReservation 1:

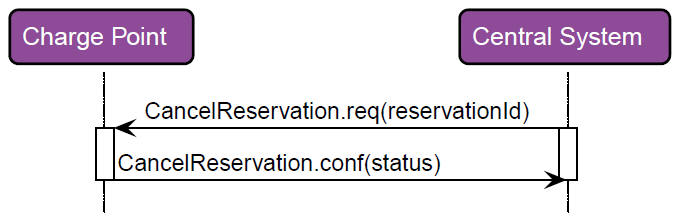

With this method, an OCPP client receives a Cancel Reservation request from the corresponding OCPP server. To respond to the request, the method RespCancelReservation must be called.

RecvCancelReservation 2:

Syntax

METHOD RecvCancelReservation : BOOL
VAR_OUTPUT
    hMessageId     : T_OCPP_MessageId;
    nReservationId : UDINT;
END_VAR

Return value

Name	Type	Description
RecvCancelReservation	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Outputs

Name	Type	Description
hMessageId	T_OCPP_MessageId	MessageId of the received message.
nReservationId	UDINT	ID of the reservation to be canceled.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
