SendTriggerMessage

SendTriggerMessage 1:

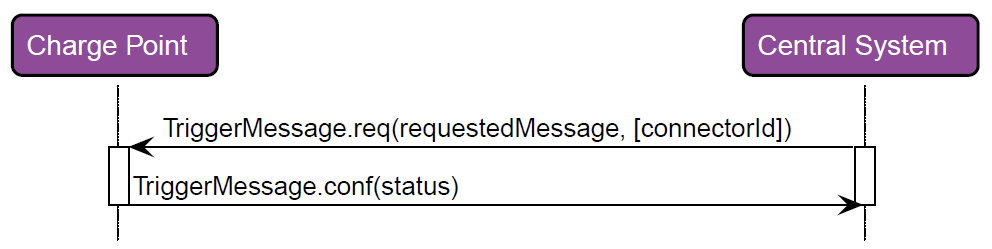

With this method, an OCPP server sends a Trigger Message request to the connected OCPP client. The response from the OCPP client is processed directly within the method.

SendTriggerMessage 2:

Syntax

METHOD SendTriggerMessage : BOOL
VAR_INPUT
    eRequestedMessage : E_OCPP1_MessageTrigger;
    nConnectorId      : UDINT := 0;
END_VAR
VAR_OUTPUT
    eStatus           : E_OCPP1_TriggerMessageStatus;
END_VAR

Return value

Name	Type	Description
SendTriggerMessage	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Inputs

Name	Type	Description
eRequestedMessage	E_OCPP1_MessageTrigger	Type of message to be triggered.
nConnectorId	UDINT	ID of the Connector of a Charge Point.

Outputs

Name	Type	Description
eStatus	E_OCPP1_TriggerMessageStatus	The status indicates whether the Charge Point will send the requested message or not.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
