SendGetConfiguration

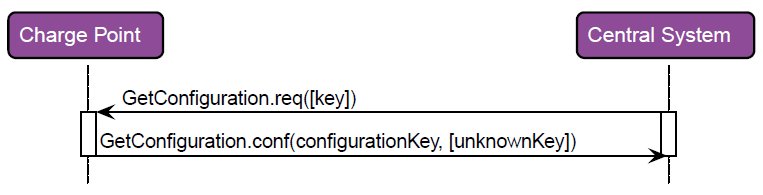

With this method, an OCPP server sends a Get Configuration request to the connected OCPP client. The response from the OCPP client is processed directly within the method.
Syntax
METHOD SendGetConfiguration : BOOL
VAR_IN_OUT
arrKeys : ARRAY[*] OF ST_OCPP1_ConfigKeyValue;
END_VAR
VAR_OUTPUT
nKeysCount : UDINT := 0;
nUnknownCount : UDINT := 0;
END_VAR
Return value
Name | Type | Description |
|---|---|---|
SendGetConfiguration | BOOL | The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error. |
Inputs/outputs
Name | Type | Description |
|---|---|---|
arrKeys | ARRAY [*] OF ST_OCPP1_ConfigKeyValue | List of requested or known configuration keys for which the configuration is requested. |
Outputs
Name | Type | Description |
|---|---|---|
nKeysCount | UDINT | Number of the following configuration keys. |
nUnknownCount | UDINT | Number of the following unknown configuration keys. |
Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
