SendGetCompositeSchedule

SendGetCompositeSchedule 1:

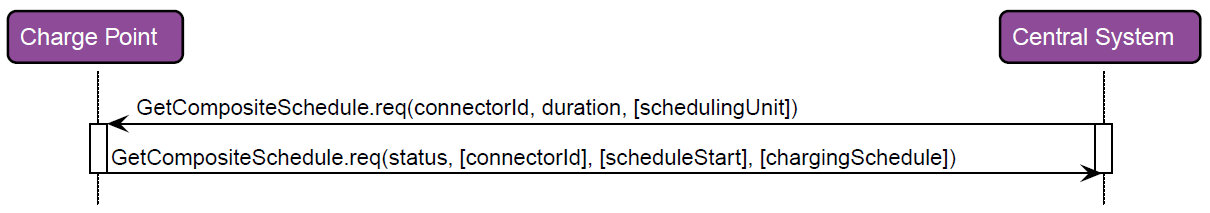

With this method, an OCPP server sends a Get Composite Schedule request to the connected OCPP client. The response from the OCPP client is processed directly within the method.

SendGetCompositeSchedule 2:

Syntax

METHOD SendGetCompositeSchedule : BOOL
VAR_INPUT
    nConnectorId      : UDINT;
    nDuration         : UDINT;
    eChargingRateUnit : E_OCPP1_ChargingRateUnitType := E_OCPP_ChargingRateUnitType.None;
END_VAR
VAR_OUTPUT
    eStatus           : E_OCPP1_GetCompositeScheduleStatus;
    nConnectorIdRes   : UDINT;
    nScheduleStart    : ULINT := 0;
    mChargingSchedule : ST_OCPP1_ChargingScheduleMax;
END_VAR

Return value

Name	Type	Description
SendGetCompositeSchedule	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Inputs

Name	Type	Description
nConnectorId	UDINT	ID of the Connector of a Charge Point.
nDuration	UDINT	Length of the requested schedule.
eChargingRateUnit	E_OCPP1_ChargingRateUnitType	Used to specify the unit for the request.

Outputs

Name	Type	Description
eStatus	E_OCPP1_GetCompositeScheduleStatus	The status shows whether the schedule request could be answered by the Charge Point.
nConnectorIdRes	UDINT	Identifier of the Connector to which the schedule in the response refers.
nScheduleStart	ULINT	Start time of the schedule.
mChargingSchedule	ST_OCPP1_ChargingScheduleMax	Requested schedule.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
