SendClearChargingProfile

SendClearChargingProfile 1:

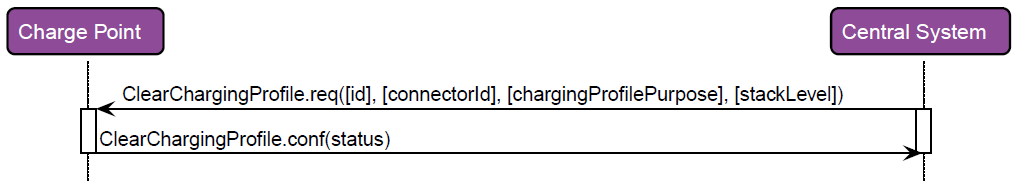

With this method, an OCPP server sends a Clear Charging Profile request to the connected OCPP client. The response from the OCPP client is processed directly within the method.

SendClearChargingProfile 2:

Syntax

METHOD SendClearChargingProfile : BOOL
VAR_INPUT
    nProfileId              : UDINT := 0;
    nConnectorId            : UDINT := 0;
    eChargingProfilePurpose : E_OCPP1_ChargingProfilePurposeType := E_OCPP_ChargingProfilePurposeType.None;
    nStackLevel             : UDINT := 0;
END_VAR
VAR_OUTPUT
    eStatus                 : E_OCPP1_ClearChargingProfileStatus;
END_VAR

Return value

Name	Type	Description
SendClearChargingProfile	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Inputs

Name	Type	Description
nProfileId	UDINT	Identifier of the Charging Profile to be cleared.
nConnectorId	UDINT	ID of the Connector of a Charge Point. The value 0 indicates that the clearing relates to the entire Charge Point.
eChargingProfilePurpose	E_OCPP1_ChargingProfilePurposeType	Specifies the purpose of the Charging Profiles to be cleared.
nStackLevel	UDINT	Specifies the StackLevel for which Charging Profiles are cleared.

Outputs

Name	Type	Description
eStatus	E_OCPP1_ClearChargingProfileStatus	The status indicates whether the Charging Profile could be cleared from the Charge Point.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
