SendClearCache

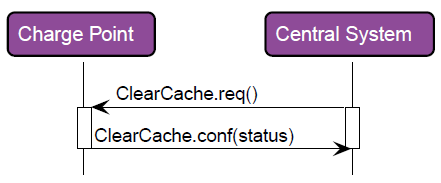

With this method, an OCPP server sends a Clear Cache request to the connected OCPP client. The response from the OCPP client is processed directly within the method.
Syntax
METHOD SendClearCache : BOOL
VAR_OUTPUT
eStatus : E_OCPP1_ClearCacheStatus;
END_VAR
Return value
Name | Type | Description |
|---|---|---|
SendClearCache | BOOL | The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error. |
Outputs
Name | Type | Description |
|---|---|---|
eStatus | The status indicates whether the clearing of the Cache Profile has been accepted by the Charge Point. |
Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
