RecvStopTransaction

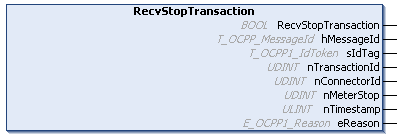

RecvStopTransaction 1:

With this method, an OCPP server receives a Stop Transaction request from the connected OCPP client. To respond to the request, the RespStopTransaction method must be called.

RecvStopTransaction 2:

Syntax

METHOD RecvStopTransaction : BOOL
VAR_OUTPUT
    hMessageId     : T_OCPP_MessageId;
    sIdTag         : T_OCPP1_IdToken;
    nTransactionId : UDINT;
    nConnectorId   : UDINT;
    nMeterStop     : UDINT;
    nTimestamp     : ULINT;
    eReason        : E_OCPP1_Reason;
END_VAR

Return value

Name	Type	Description
RecvStopTransaction	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Outputs

Name
hMessageId	T_OCPP_MessageId	MessageId of the received message.
sIdTag	T_OCPP1_IdToken	ID token for which the transaction is to be stopped.
nTransactionId	UDINT	ID of the transaction to be stopped. Is contained in the Central System's response to a Start Transaction request.
nConnectorId	UDINT	ID of the Connector of a Charge Point.
nMeterStop	UDINT	Value in watt-hours at the end of the transaction.
nTimestamp	ULINT	Date and time when the transaction is stopped.
eReason	E_OCPP1_Reason	Can optionally contain the reason for stopping the transaction.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
