RecvStatusNotification

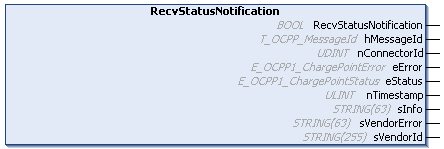

RecvStatusNotification 1:

With this method, an OCPP server receives a Status Notification from the connected OCPP client. To respond to the Status Notification, the RespStatusNotification method must be called.

RecvStatusNotification 2:

Syntax

METHOD RecvStatusNotification : BOOL
VAR_OUTPUT
    hMessageId   : T_OCPP_MessageId;
    nConnectorId : UDINT;
    eError       : E_OCPP1_ChargePointError;
    eStatus      : E_OCPP1_ChargePointStatus;
    nTimestamp   : ULINT := 0;
    sInfo        : STRING(63) := '';
    sVendorError : STRING(63) := '';
    sVendorId    : STRING(255) := '';
END_VAR

Return value

Name	Type	Description
RecvStatusNotification	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Outputs

Name
hMessageId	T_OCPP_MessageId	MessageId of the received message.
nConnectorId	UDINT	ID of the Connector of a Charge Point.
eError	E_OCPP1_ChargePointError	Error code received in the Status Notification.
eStatus	E_OCPP1_ChargePointStatus	Status received in the Status Notification.
nTimestamp	ULINT	The timestamp of the Status Notification.
sInfo	STRING(63)	Contains optional, freely definable additional information on the error.
sVendorError	STRING(63)	Optionally contains the vendor-specific error code.
sVendorId	STRING(255)	Optionally contains the identifier for the vendor-specific implementation.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
