RecvFirmwareStatusNotification

RecvFirmwareStatusNotification 1:

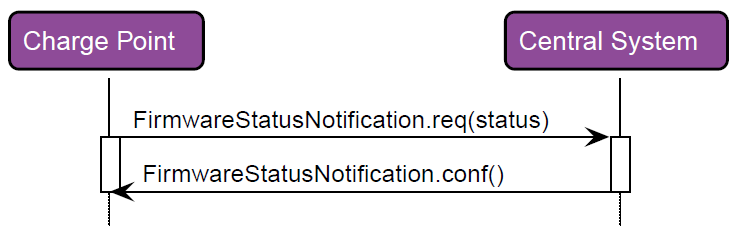

With this method, an OCPP server receives a Firmware Status Notification from the connected OCPP client. To respond to the Firmware Status Notification, the RespFirmwareStatusNotification method must be called.

RecvFirmwareStatusNotification 2:

Syntax

METHOD RecvFirmwareStatusNotification : BOOL
VAR_OUTPUT
    hMessageId : T_OCPP_MessageId;
    eStatus    : E_OCPP1_FirmwareStatus;
END_VAR

Return value

Name	Type	Description
RecvFirmwareStatusNotification	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Outputs

Name	Type	Description
hMessageId	T_OCPP_MessageId	MessageId of the received message.
eStatus	E_OCPP1_FirmwareStatus	Status of a firmware installation.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
