SendRemoteStopTransaction

SendRemoteStopTransaction 1:

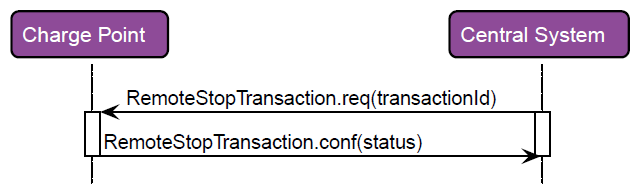

With this method, an OCPP server sends a Remote Stop Transaction request to the corresponding OCPP client. The response from the OCPP client is processed directly within the method.

SendRemoteStopTransaction 2:

Syntax

METHOD SendRemoteStopTransaction : BOOL
VAR_INPUT
    hStationId     : UDINT;
    nTransactionId : UDINT;
END_VAR
VAR_OUTPUT
    eStatus        : E_OCPP1_RemoteStartStopStatus;
END_VAR

Return value

Name	Type	Description
SendRemoteStopTransaction	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Inputs

Name	Type	Description
hStationId	UDINT	Identifier of the OCPP client in the instance of the OCPP server.
nTransactionId	UDINT	Identifier of the transaction to be stopped.

Outputs

Name	Type	Description
eStatus	E_OCPP1_RemoteStartStopStatus	The status indicates whether the Charge Point has accepted the request to stop a transaction.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
