SendClearChargingProfile

SendClearChargingProfile 1:

With this method, an OCPP server sends a Clear Charging Profile request to the corresponding OCPP client. The response from the OCPP client is processed directly within the method.

SendClearChargingProfile 2:

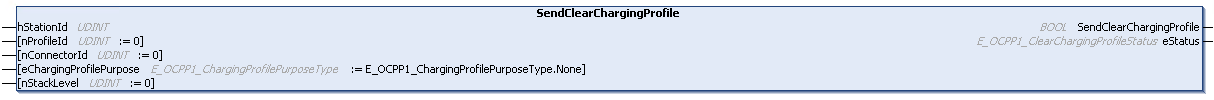

Syntax

METHOD SendClearChargingProfile : BOOL
VAR_INPUT
    hStationId              : UDINT;
    nProfileId              : UDINT := 0;
    nConnectorId            : UDINT := 0;
    eChargingProfilePurpose : E_OCPP1_ChargingProfilePurposeType := E_OCPP_ChargingProfilePurposeType.None;
    nStackLevel             : UDINT := 0;
END_VAR
VAR_OUTPUT
    eStatus                 : E_OCPP1_ClearChargingProfileStatus;
END_VAR

SendClearChargingProfile 3: Return value

Name

Type

Description

SendClearChargingProfile

BOOL

The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

SendClearChargingProfile 4: Inputs

Name

Type

Description

hStationId

UDINT

Identifier of the OCPP client in the instance of the OCPP server.

nProfileId

UDINT

Identifier of the Charging Profile to be cleared.

nConnectorId

UDINT

ID of the Connector of a Charge Point. The value 0 indicates that the clearing relates to the entire Charge Point.

eChargingProfilePurpose

E_OCPP1_ChargingProfilePurposeType

Specifies the purpose of the Charging Profiles to be cleared.

nStackLevel

UDINT

Specifies the StackLevel for which Charging Profiles are cleared.

SendClearChargingProfile 5: Outputs

Name

Type

Description

eStatus

E_OCPP1_ClearChargingProfileStatus

The status indicates whether the Charging Profile could be cleared from the Charge Point.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
