SendChangeConfiguration

SendChangeConfiguration 1:

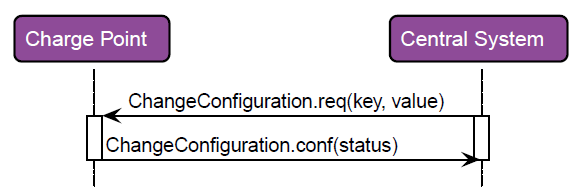

With this method, an OCPP server sends a Change Configuration request to the corresponding OCPP client. The response from the OCPP client is processed directly within the method.

SendChangeConfiguration 2:

Syntax

METHOD SendChangeConfiguration : BOOL
VAR_INPUT
    hStationId : UDINT;
    sKey       : T_OCPP1_ConfigKey;
    sValue     : T_OCPP1_ConfigValue;
END_VAR
VAR_OUTPUT
    eStatus    : E_OCPP1_ConfigurationStatus;
END_VAR

Return value

Name	Type	Description
SendChangeConfiguration	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Inputs

Name	Type	Description
hStationId	UDINT	Identifier of the OCPP client in the instance of the OCPP server.
sKey	T_OCPP1_ConfigKey	The name of the configuration setting to be changed.
sValue	T_OCPP1_ConfigValue	The new value of the configuration setting.

Outputs

Name	Type	Description
eStatus	E_OCPP1_ConfigurationStatus	The status indicates whether the configuration change has been accepted.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
