SendChangeAvailability

SendChangeAvailability 1:

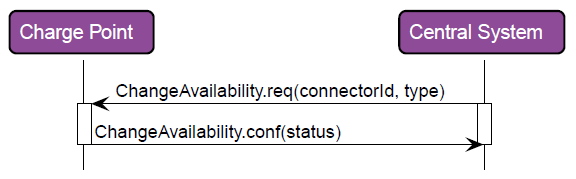

With this method, an OCPP server sends a Change Availability request to the corresponding OCPP client. The response from the OCPP client is processed directly within the method.

SendChangeAvailability 2:

Syntax

METHOD SendChangeAvailability : BOOL
VAR_INPUT
    hStationId   : UDINT;
    nConnectorId : UDINT;
    eType        : E_OCPP1_AvailabilityType;
END_VAR
VAR_OUTPUT
    eStatus      : E_OCPP1_AvailabilityStatus;
END_VAR

Return value

Name	Type	Description
SendChangeAvailability	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Inputs

Name	Type	Description
hStationId	UDINT	Identifier of the OCPP client in the instance of the OCPP server.
nConnectorId	UDINT	ID of the Connector of a Charge Point.
eType	E_OCPP1_AvailabilityType	Type of availability change that the Charge Point is to carry out.

Outputs

Name	Type	Description
eStatus	E_OCPP1_AvailabilityStatus	Response whether the Charge Point was able to implement the requested availability change.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
