SendCancelReservation

SendCancelReservation 1:

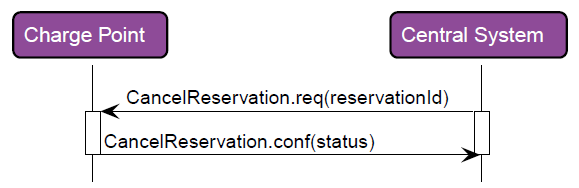

With this method, an OCPP server sends a Cancel Reservation request to the corresponding OCPP client. The response from the OCPP client is processed directly within the method.

SendCancelReservation 2:

Syntax

METHOD SendCancelReservation : BOOL
VAR_INPUT
    hStationId     : UDINT;
    nReservationId : UDINT;
END_VAR
VAR_OUTPUT
    eStatus        : E_OCPP1_CancelReservationStatus;
END_VAR

Return value

Name	Type	Description
SendCancelReservation	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Inputs

Name	Type	Description
hStationId	UDINT	Identifier of the OCPP client in the instance of the OCPP server.
nReservationId	UDINT	ID of the reservation to be canceled.

Outputs

Name	Type	Description
eStatus	E_OCPP1_CancelReservationStatus	The status shows whether the reservation was successfully canceled.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
