RespAuthorize

RespAuthorize 1:

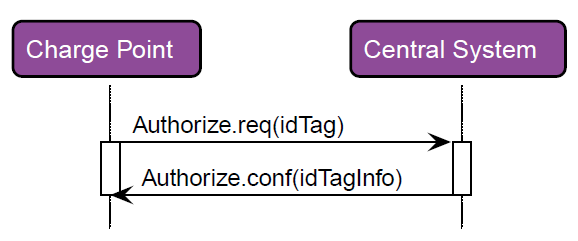

With this method, an OCPP server responds to an Authorize request from an OCPP client.

RespAuthorize 2:

Syntax

METHOD RespAuthorize : BOOL
VAR_INPUT
    hStationId : UDINT;
    hMessageId : T_OCPP_MessageId;
    eStatus    : E_OCPP1_AuthorizationStatus;
END_VAR

Return value

Name	Type	Description
RespAuthorize	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Inputs

Name	Type	Description
hStationId	UDINT	Identifier of the OCPP client in the instance of the OCPP server.
hMessageId	T_OCPP_MessageId	MessageId of the received message.
eStatus	E_OCPP1_AuthorizationStatus	Status of the authorization in response to the OCPP client.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
