RecvStopTransaction

RecvStopTransaction 1:

With this method, an OCPP server receives a Stop Transaction request from an OCPP client. To respond to the request, the method RespStopTransaction must be called.

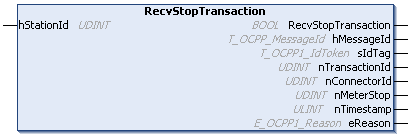

RecvStopTransaction 2:

Syntax

METHOD RecvStopTransaction : BOOL
VAR_INPUT
    hStationId     : UDINT;
END_VAR
VAR_OUTPUT
    hMessageId     : T_OCPP_MessageId;
    sIdTag         : T_OCPP1_IdToken;
    nTransactionId : UDINT;
    nConnectorId   : UDINT;
    nMeterStop     : UDINT;
    nTimestamp     : ULINT;
    eReason        : E_OCPP1_Reason;
END_VAR

Return value

Name	Type	Description
RecvStopTransaction	BOOL	The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

Inputs

Name	Type	Description
hStationId	UDINT	Identifier of the OCPP client in the instance of the OCPP server.

Outputs

Name	Type	Description
hMessageId	T_OCPP_MessageId	MessageId of the received message.
sIdTag	T_OCPP1_IdToken	ID token for which the transaction is to be stopped.
nTransactionId	UDINT	ID of the transaction to be stopped. This ID is contained in the Central System's response to a Start Transaction request.
nConnectorId	UDINT	ID of the Connector of a Charge Point.
nMeterStop	UDINT	Value in watt-hours at the end of the transaction.
nTimestamp	ULINT	Date and time when the transaction is stopped.
eReason	E_OCPP1_Reason	Can optionally contain the reason for stopping the transaction.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
