RespUnlockConnector

RespUnlockConnector 1:

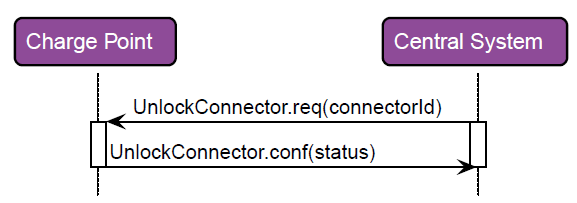

With this method, an OCPP client responds to an Unlock Connector request from the corresponding OCPP server.

RespUnlockConnector 2:

Syntax

METHOD RespUnlockConnector : BOOL
VAR_INPUT
    hMessageId : T_OCPP_MessageId;
    eStatus    : E_OCPP1_UnlockStatus;
END_VAR

RespUnlockConnector 3: Return value

Name

Type

Description

RespUnlockConnector

BOOL

The method returns the return value TRUE if the call was successful. A method call is also considered successfully completed in the event of an error.

RespUnlockConnector 4: Inputs

Name

Type

Description

hMessageId

T_OCPP_MessageId

MessageId of the received message.

eStatus

E_OCPP1_UnlockStatus

The status shows whether the Connector has been unlocked.

Possible errors are output at the outputs bError and hrErrorCode of the function block instance.
