Tc3_RRCS_Sample02

If the GetState request from the previous sample was answered successfully, the functionality can be extended as follows:

A query using GetAlive (This function checks whether the connection exists.)
The query IsConnectedToArtist (This is used to determine whether the RRCS server is connected to an artist matrix)
The cyclic querying of the states of the 'Logic Sources'.
Setting the 'Logic Sources'.

Download the example here:
Tc3_RRCS_Sample02

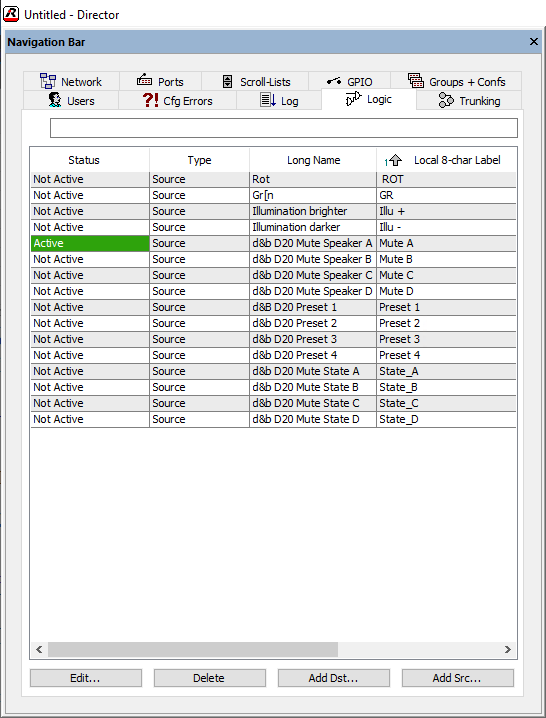

The following 'Logic Sources' were created for this sample:

Tc3_RRCS_Sample02 1:

Based on the previous sample, declare further variables:

PROGRAM MAIN
VAR
    (* the state of the statemachine *)
    eState: E_RRCS_State := IDLE;
    (* the IP-Address and port of the PC which runs the RRCS-Server *)
    fbRRCScom: FB_RRCScom(
        ipAddr_Server:= '192.168.42.59',
        ipPort_Server:=8193):= (eTraceLevel := TcEventSeverity.Verbose);
    (* Retry in case of errors *)
    tonRetry: TON := (pt := T#5S);
    tonWait: TON := (pt := T#70MS);
    ui: UINT;

    {region 'Get States'}
    (* functionblock used to get the state of the RRCS-Server *)
    fbGetState: FB_GetState(pfbRRCscom := ADR(fbRRCScom));
    {endregion}

    {region 'Get Alive'}
    bExecuteGetAlive: BOOL := TRUE;
    fbGetAlive: FB_GetAlive(pfbRRCscom := ADR(fbRRCScom));
    {endregion}

    {region 'Is connected to Artist'}
    bExecuteGetConnectedToArtist: BOOL := TRUE;
    fbIsConnectedToArtist: FB_IsConnectedToArtist(pfbRRCscom := ADR(fbRRCScom));
    {endregion}

    {region 'Get Logic Sources'}
    bExecuteGetAllLogicSources: BOOL;
    fbGetAllLogicSources_V2: FB_GetAllLogicSources_v2(pfbRRCscom := ADR(fbRRCScom));
    tonGetLogicSourceStates: TON;
{endregion}

    {region 'Set a Logic Source'}
    bState: BOOL; // the required status
    _bState: BOOL;
    fbSetLogicSourceState: FB_SetLogicSourceState(pfbRRCscom := ADR(fbRRCScom));
    {endregion}
    bErrorObjId: BOOL;
END_VAR

The program sequence from the previous sample was supplemented with additional states in the state machine:

CASE eState OF
    CHECK_GATEWAY:
        tonRetry(IN := FALSE);
        fbGetState(bExecute:= bExecuteGetState);
        bExecuteGetState:= FALSE;
        IF fbGetState.bError THEN
            eState:= ERROR;
        ELSIF NOT fbGetState.bBusy THEN
            IF fbGetState.sGatewayState = 'Working' THEN
                    eState := CHECK_ALIVE;
            ELSE
                eState := ERROR;
            END_IF
        END_IF

    CHECK_ALIVE:
        fbGetAlive(bExecute:= bExecuteGetAlive);
        bExecuteGetAlive:= FALSE;
        IF fbGetAlive.bError THEN
            eState:= ERROR;
        ELSIF NOT fbGetAlive.bBusy THEN
            IF fbGetAlive.bAlive THEN
                    bExecuteGetConnectedToArtist:= TRUE;
                    eState := CHECK_CONN_ARTIST;
            ELSE
                eState := ERROR;
            END_IF
        END_IF


    CHECK_CONN_ARTIST:
        fbIsConnectedToArtist(bExecute:= bExecuteGetConnectedToArtist);
        bExecuteGetConnectedToArtist:= FALSE;
        IF fbIsConnectedToArtist.bError THEN
            eState:= ERROR;
        ELSIF NOT fbIsConnectedToArtist.bBusy THEN
            IF fbIsConnectedToArtist.bIsConnected THEN
                    eState := GET_SOURCES;
            ELSE
                eState := ERROR;
            END_IF
        END_IF

    GET_SOURCES:
        IF bState <> _bState THEN
            _bState := bState;
            eState := SET_SOURCE;
        ELSE
            tonGetLogicSourceStates(in := TRUE, pt:= T#50MS);
            IF tonGetLogicSourceStates.Q THEN
                tonGetLogicSourceStates(In := FALSE);
                bExecuteGetAllLogicSources := TRUE;
            END_IF
            fbGetAllLogicSources_V2(bExecute:= bExecuteGetAllLogicSources);
            bExecuteGetAllLogicSources := FALSE;
            IF fbGetAllLogicSources_V2.bError THEN
                fbGetAllLogicSources_V2(bExecute:= FALSE);
                eState:= ERROR;
            ELSIF NOT fbGetAllLogicSources_V2.bBusy AND bExecuteGetAllLogicSources THEN
                fbGetAllLogicSources_V2(bExecute:= FALSE);
                IF fbGetAllLogicSources_V2.eRRCS_ErrorCode <> E_RRCS_ErrorCodes.Success THEN
                    eState:= ERROR;
                END_IF
            END_IF
        END_IF

    SET_SOURCE:
        FOR ui := 0 TO PL_RRCS.nMaxLogicSources - 1 DO
            IF fbGetAllLogicSources_V2.aLogicSources[ui].sLabel_8Char = 'Mute A' THEN
                EXIT;
            END_IF
         END_FOR
        IF ui < PL_RRCS.nMaxLogicSources THEN // Logic Source found ....
            fbSetLogicSourceState(bExecute := TRUE, bState := bState,
nObjectID := fbGetAllLogicSources_V2.aLogicSources[ui].nObjectID,
                aLogicSources := fbGetAllLogicSources_V2.aLogicSources);
                IF fbSetLogicSourceState.bError THEN
                    fbSetLogicSourceState(bExecute := FALSE, aLogicSources := fbGetAllLogicSources_V2.aLogicSources);
                    eState:= ERROR;
                ELSIF NOT fbSetLogicSourceState.bBusy THEN
                    fbSetLogicSourceState(bExecute := FALSE, aLogicSources := fbGetAllLogicSources_V2.aLogicSources);
                    eState := WAIT;
                END_IF
        END_IF

    WAIT:
        tonWAIT(In := NOT tonWAIT.Q);
        IF tonWAIT.Q THEN
            tonWAIT(In := FALSE);
            eState := GET_SOURCES;
        END_IF

    ERROR:
        fbGetState(bExecute:= FALSE);
        tonRetry(In:= NOT tonRetry.Q);
        IF tonRetry.Q THEN
            bExecuteGetState:= TRUE;
            eState:= CHECK_GATEWAY;
        END_IF

END_CASE

IF NOT tonRetry.Q THEN
    eState := SEL(fbRRCScom.eCommState = E_CommState.ERROR, eState, ERROR);
END_IF

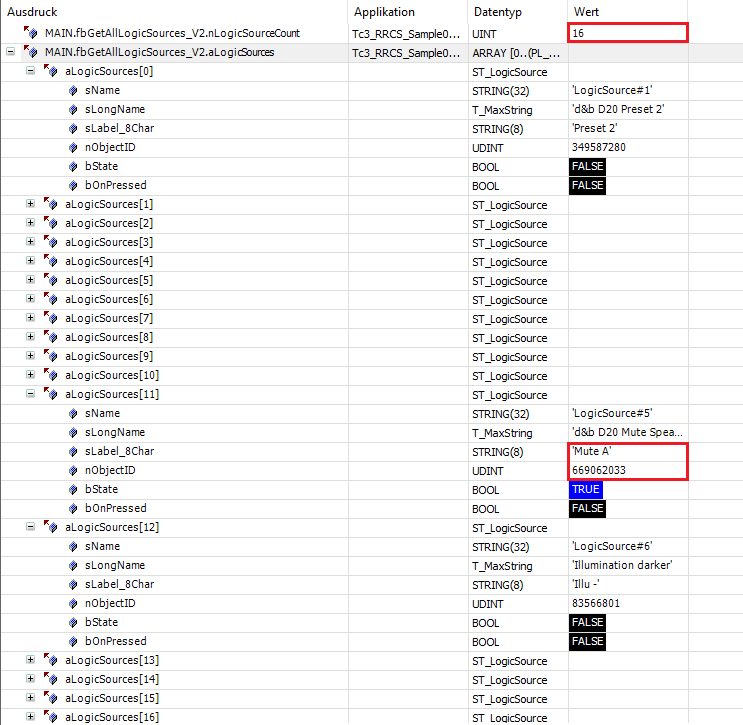

The number and state of the logic sources is polled. Those found are made available in array form as follows:

Tc3_RRCS_Sample02 2:

Each of the 'Logic Sources' can be addressed by means of a unique ObjectID.
If the state of the variable bState is changed, an attempt is made to set the state of this 'Logic Source' to the desired value.
This is done with an instance of the function block FB_SetLogicSource.

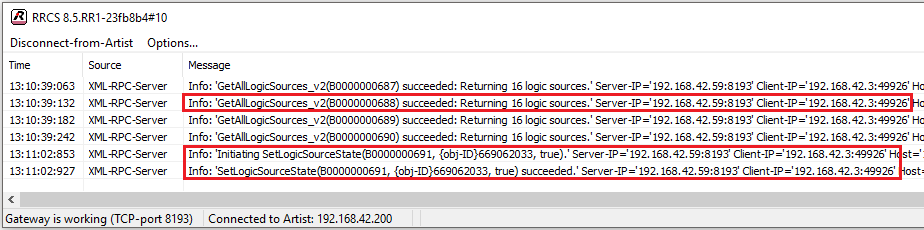

In the GUI of the RRCS server, the setting of the value of LogicSource#5 is displayed as follows:

Tc3_RRCS_Sample02 3:
