FB_IotFunctions_Connector

The function block enables communication with a local/remote TC3 IoT Data Agent installation. The Execute method of the function block must be called cyclically in order to ensure the background communication with the TC3 IoT Data Agent to facilitate the reception of messages. All connection parameters and global settings are available as input parameters.

Syntax

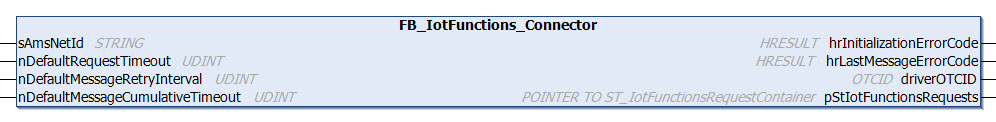

FUNCTION_BLOCK FB_IotFunctions_Connector
VAR_INPUT
    sAmsNetId                        : STRING;
    nDefaultRequestTimeout           : UDINT;
    nDefaultMessageRetryInterval     : UDINT;
    nDefaultMessageCumulativeTimeout : UDINT;
END_VAR
VAR_OUTPUT
    hrInitializationErrorCode        : HRESULT;
    hrLastMessageErrorCode           : HRESULT;
    driverOTCID                      : OTCID;
    pStIotFunctionsRequests          : POINTER TO ST_IotFunctionsRequestContainer;
END_VAR

Inputs

Designation	Type	Description
sAmsNetId	STRING	Target Data Agent Instance AmsNetId [127.0.0.1.1.1]
nDefaultRequestTimeout	UDINT	Default timeout value in milliseconds [10000]
nDefaultMessageRetryInterval	UDINT	Default message retry interval in milliseconds (0 disables retries) [0]
nDefaultMessageCumulativeTimeout	UDINT	Default cumulative timeout in milliseconds (if message data is successfully received, the timeout of the relevant request is extended by this value) [0]

Outputs

Designation	Type	Description
hrInitializationErrorCode	HRESULT	HRESULT of driver instantiation and configuration
hrLastMessageErrorCode	HRESULT	HRESULT of latest reported error occurred in any message during the Execute call.
driverOTCID	OTCID	OTCID of the instantiated driver (can be passed on to FB input variables for requests and messages in environments with multiple data agents)
pStIotFunctionsRequests	POINTER TO ST_IotFunctionsRequestContainer	Description of latest error code.

Methods

Designation	Description
Execute	Enables background communication with TC3 IoT Data Agent. The method must be called cyclically.

Requirements

Development environment	Target platform	PLC libraries to include
TwinCAT v3.1.4022.14	IPC or CX (c86, x64, ARM)	Tc3_IotFunctions

Further Information

Execute
